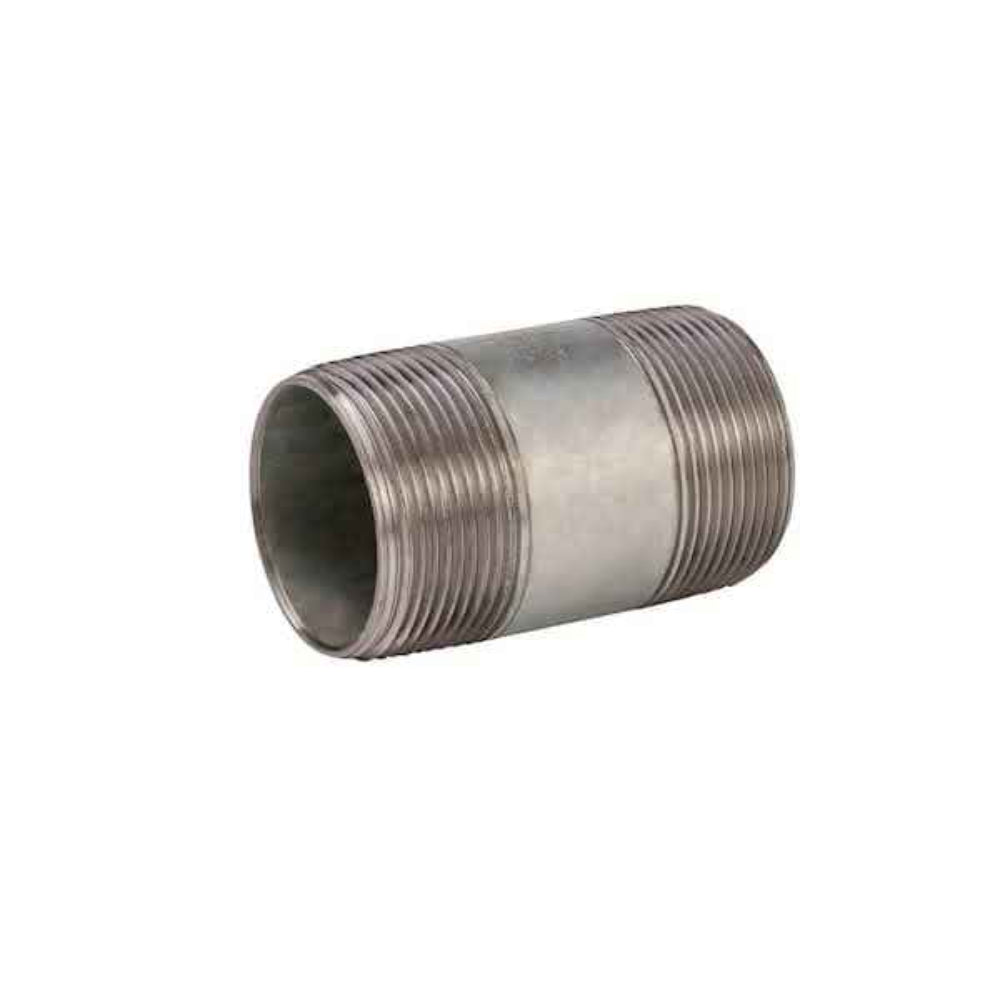

Aqualine GPN-125-30 Galvanized Steel Nipple 1-1/4x3in Sch 40

Product Description

The AQUALINE GPN-125-30 is a Schedule 40 galvanized steel nipple used to connect threaded pipe sections in plumbing, HVAC, and industrial piping systems. Measuring 1-1/4 inches in diameter and 3 inches in length, it features hot-dip galvanized steel construction that resists corrosion in wet and exposed environments. The threaded ends conform to standard NPT dimensions, allowing direct connection to fittings, valves, and pipe sections of the same size. Plumbers and pipefitters install this nipple where a short, rigid threaded connection is required between two female-threaded components.

This nipple is suited for residential and light commercial plumbing, water supply lines, gas distribution piping, and mechanical room installations. Its Schedule 40 wall thickness provides the pressure rating and structural integrity needed for typical service line and distribution applications. It is commonly used in hydronic heating systems, fire suppression rough-in, and general utility piping where galvanized steel is the specified material.

Key Features

• 1-1/4 inch nominal diameter with 3-inch overall length
• Schedule 40 wall thickness for standard pressure service
• Galvanized steel construction for corrosion resistance in wet environments
• NPT-threaded ends for compatibility with standard pipe fittings and valves
• Lightweight at 0.48 pounds for easy handling during installation

Compatibility

Designed as an OEM-style replacement and standard-service nipple for 1-1/4 inch NPT threaded pipe systems using Schedule 40 galvanized steel pipe and fittings.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and IFGC codes for the intended service. Apply thread sealant tape or pipe compound to the male threads before assembly, and tighten using a pipe wrench to achieve a leak-free joint. Shut off and depressurize the line before removing or replacing any nipple in an existing system. Do not over-tighten, as this can crack fittings or distort threads.

Technical Specifications

• Material: Galvanized Steel
• Nominal Diameter: 1-1/4 inches
• Length: 3 inches
• Schedule: Schedule 40
• Thread Type: NPT
• Weight: 0.48 pounds

Standard Information

• Brand: AQUALINE
• Manufacturer Part Number: GPN-125-30
