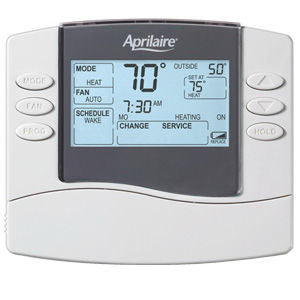

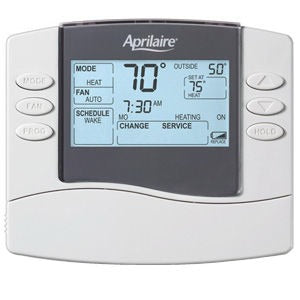

Aprilaire 8466 Programmable Thermostat 45 - 99 deg F

Product Description

The Aprilaire RP8466 Programmable Thermostat by Research Products Corporation offers a control range from forty-five to ninety-nine degrees Fahrenheit. It supports three stages of heat and two stages of cooling, making it adaptable for different HVAC systems. This thermostat operates on a voltage rating of twenty-four VAC and can be powered through hardwiring or batteries.

• Large LCD display enhances visibility with backlighting
• Easy to use temperature control, with program override capability
• Permanent memory retention assures settings during power outages

Product Highlights

The programmable thermostat is designed for both conventional systems and heat pumps. It includes a two AA battery pack and features a soft-touch keypad for user-friendly operation.

Product Information

Standard Information

• Brand Name: Aprilaire
• Manufacturer: Research Products Corporation

Technical Specifications

• Control Range: 45 - 99 deg F
• Stages Heat: 3
• Stages Cool: 2
• Differential: +/-1 deg F
• Power Source: Hardwired/Battery
• Dimensions: 5-1/4 Inch L x 4-1/2 Inch W x 1 Inch D
• Programs Per Week: 5-1-1
• Terminal Designations: Rc, R, W, Y, G, C, S1, S2, 0/B, L, W2, Y2
• Display: Backlit
• Application: Conventional or Heat Pump
• Voltage Rating: 24 VAC
