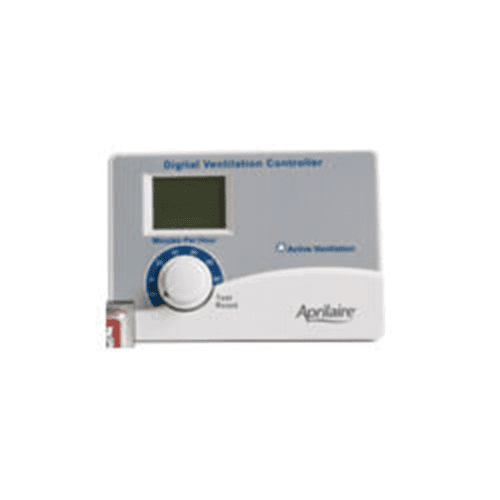

Aprilaire 8120A Digital Ventilation Control

Product Description

The Aprilaire 8120A Digital Ventilation Control is essential for HVAC systems. This device introduces fresh air and activates the HVAC fan to circulate air throughout the space. It adheres to the ASHRAE 62.2-2010 ventilation standard, ensuring effective air management.

• Digital ventilation control for enhanced airflow.
• Meets ASHRAE 62.2-2010 ventilation standards.
• Allows selection between time-only operation or applying temperature and humidity limits.

Product Highlights

This unit improves indoor air quality and supports efficient temperature regulation.

Product Information

Standard Information

• Manufacturer: Aprilaire
• Power Source: Corded Electric

Technical Specifications

• MPN: 8120A
• Model: Aprilaire 8120A
• Voltage: 18/30 V
• Product Length: 6 inches
• Product Width: 4.2 inches
• Product Height: 1.8 inches
• Operating Temperature Range: 20-160°F
• Maximum Current through VENT Relay: 2A
• Input Voltage: 22-30 VAC
• Minimum VA Required: 2.0 VA
• UPC: 686720812057
