Appozgcomm LB-150-D LB Conduit Body 1-1/2 IN

Product Description

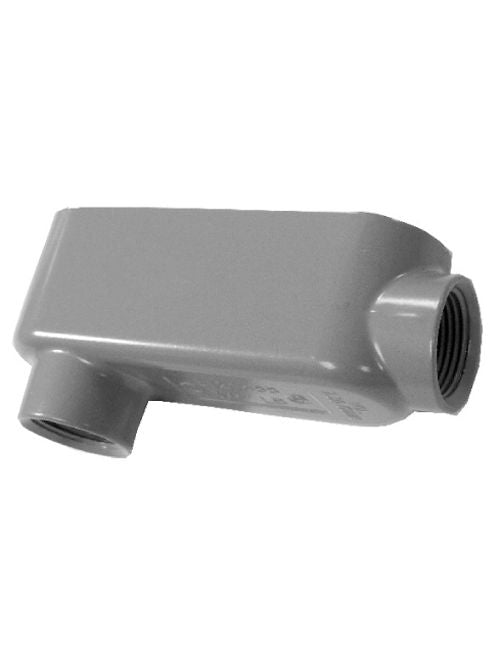

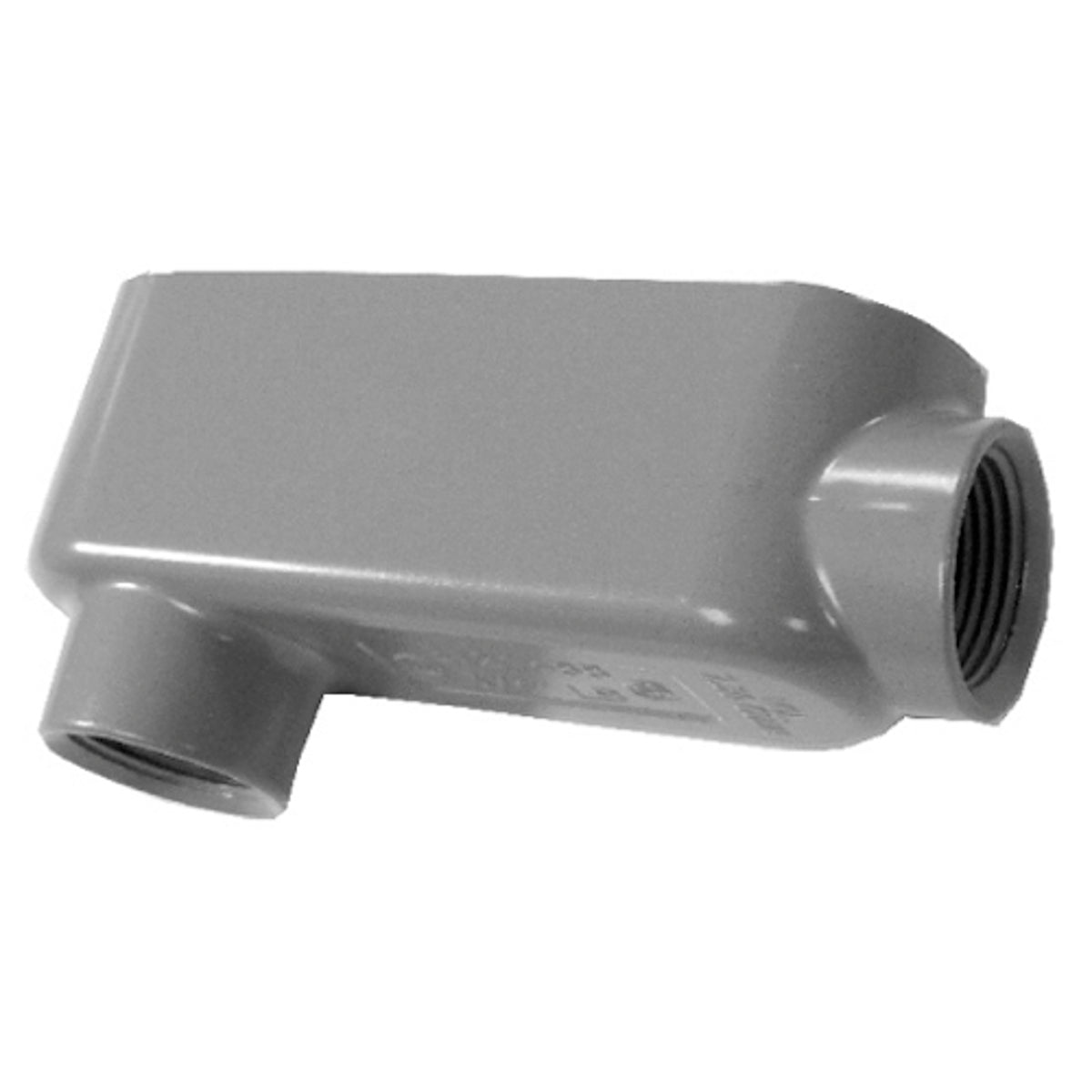

The APPOZGCOMM LB-150-D is a threaded conduit body made from diecast aluminum with an epoxy powder coat finish. It provides access to the interior of raceways for wire pulling, splicing, and maintenance, and allows connection of straight and branch conduit runs and 90 degree bends. It is UL Standard 514A certified and has a trade size of 1 1/2 inches.

• Threaded Conduit
• Diecast Aluminum Material
• Epoxy Powder Coat Finish

Product Highlights

Provides access for wire pulling, splicing, and maintenance. Allows connection of straight and branch conduit runs and 90 degree bends.

Product Information

Standard Information

• Brand: APPOZGCOMM
• Manufacturer Part Number: LB-150-D

Technical Specifications

• Type: Conduit Body
• Brand: Appozgcomm
• Width: 2.49 in
• Finish: Epoxy Powder Coated
• Height: 3.65 Inch
• Length: 7.81 Inch
• Hub Size: 1.5 in
• Material: Aluminum
• Sub Brand: Neer
• Applications: Provides access to the interior of the raceway for wire pulling , splicing and maintenance, Allows connection of straight and branch conduit runs and 90 degree bends
• Catalog Number: LB-150-D
• Manufacturer: APPOZGCOMM
• Configuration: LB
• Hub Location: 90 Deg
• Number of Hubs: 2
• Size: 7.81 Inch L x 2.49 Inch W x 3.65 Inch H
• Installation: Threaded
• Approval: UL 514A, CSA C22.2
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Capacity: 33.8 Cu Inch
