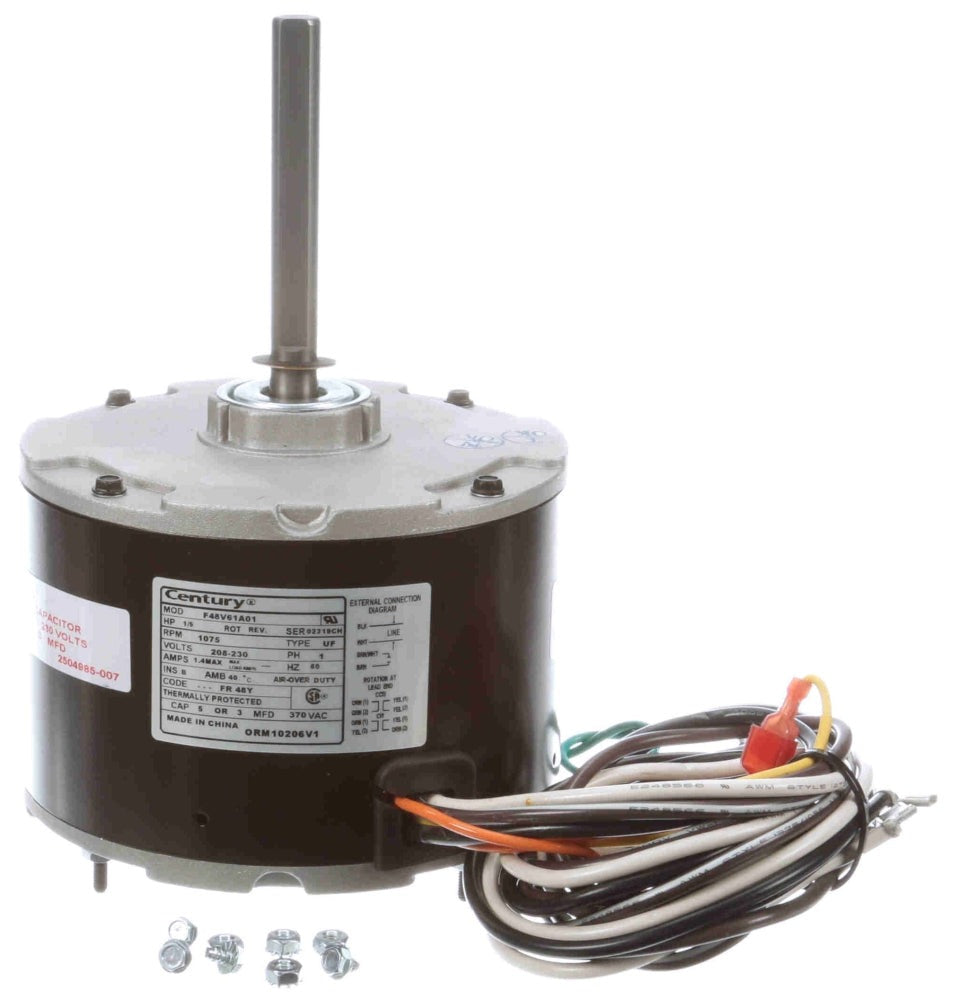

Regal Rexnord - Century Motors ORM10206V1 1/5 HP 208-230 VAC 60 Hz 1-Phase 1.4 A 6-Pole 1075 RPM Motor

Product Description

The Regal Rexnord - Century Motors ORM10206V1 is a reliable HVAC/R motor designed for varied applications. With a power rating of one-fifth horsepower and a maximum speed of one thousand seventy-five RPM, this motor operates at a voltage range of two hundred eight to two hundred thirty volts in a single phase.

• Power Rating: 1/5 HP
• Reversible Rotation
• Designed for Extended Stud Mounting

Product Highlights

This motor features a NEMA 48Y rolled steel frame and is equipped with class B insulation, making it suitable for demanding environments.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: ORM10206V1

Technical Specifications

• Voltage Rating: 208 to 230 Volt AC
• Frequency: 60 Hertz
• Motor FLA: 1.4 Amp
• Number of Speeds: 1
• Speed Rating: 1075 RPM
• Insulation Class: B
• Frame Material: Rolled Steel
• Mounting Type: Extended Stud
• Weight: 10 Pound
• Service Factor: 1
• Reversible: Yes
• Number of Poles: 6
• Shaft: Flat
• Shaft Diameter: 0.5 Inch
• Shaft Length: 4.25 Inch
• Ambient Temperature Rating: 40 Degrees Celsius
