Appleton X75-M Threaded Unilet

Product Description

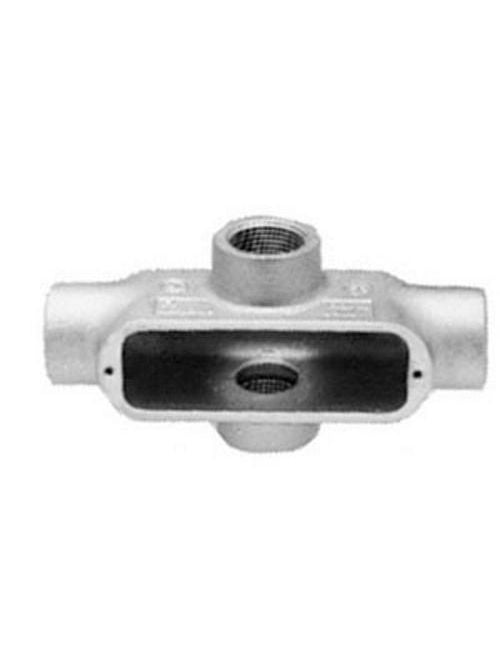

The Appleton Group X75-M is a threaded conduit outlet body designed for use in electrical applications. This conduit body features a hub size of three-quarters of an inch and is made from malleable iron. It is ideal for connecting rigid steel, aluminum conduit, and intermediate metal conduit (IMC). The product has a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder coat for enhanced protection against corrosion.

• Hub size: three-quarters of an inch
• Made from malleable iron for durability
• Triple-coat finish for corrosion resistance

Product Highlights

The Appleton X75-M is built to serve as a pulling fitting and allows for changes in direction for conduit runs. Additionally, its design smooths out integral bushings in hubs to protect conductor insulation.

Product Information

Standard Information

• Brand: Appleton
• MPN: X75-M

Technical Specifications

• Catalog Number: X75-M
• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Shape Type: Type X Conduit Outlet Body
• Hub Size: 3/4 Inch
• Width: 2.88 in
• Height: 2 in
• Connection: Tapered Female Threaded
• Capacity: 9.5 cu-in
• Applications: For use with rigid steel and aluminum conduit and IMC
• Number of Hubs: 4
