Appleton X47-SA 1 1/4 Fm7 Body Type X -Alum

Brand: APPLETON
SKU: X47-SA
Availability: Out Of Stock
$102.05
$102.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

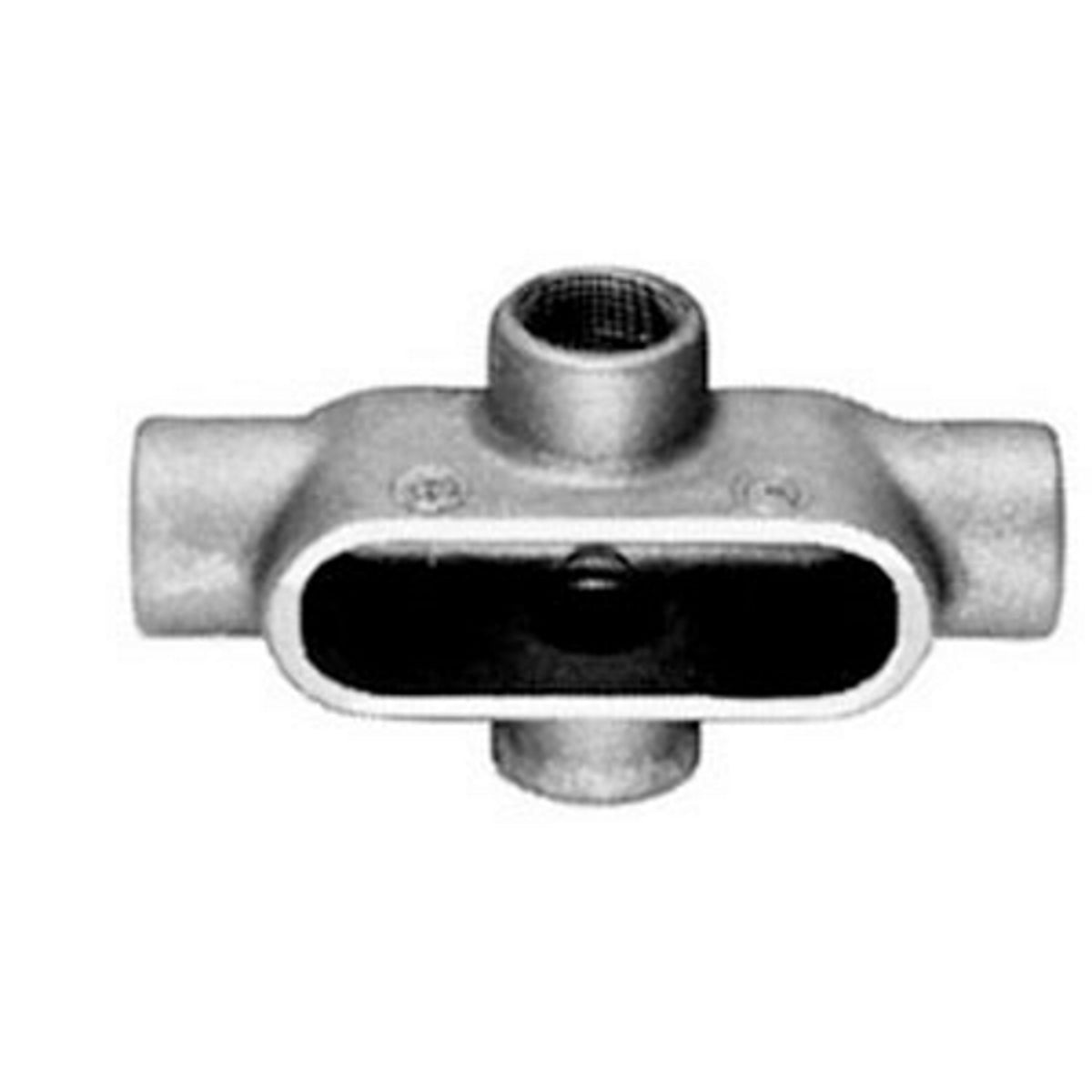

The APPLETON X47-SA FM7 UNILETS Type X Conduit Outlet Body features a 1-1/4 IN hub size and is constructed from aluminum with an epoxy powder coat finish. It is designed for use with rigid steel, rigid aluminum conduit, and IMC. This conduit outlet body serves as a pulling fitting, makes bends in conduit systems and provides openings for splicing.

  • Serves as pulling fittings
  • Makes bends in conduit system
  • Provides openings for splicing
  • Connects and changes direction of conduit runs
  • Allows connections for branch runs
  • Permits access to conductors for maintenance

Product Highlights

The APPLETON X47-SA conduit outlet body allows connections for branch runs and permits access to conductors for maintenance. It features smooth, rounded integral bushings in hubs to protect conductor insulation.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: X47-SA
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
X47-SA
Manufacturer
Appleton Electric
Brand
Appleton
Sub Brand
UNILETS
Country of Origin
Mexico
Made in USA
No
Application
For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Connection
Tapered Female Threaded
Finish
Epoxy Powder Coat
Form
7
Hub Size
1-1/4 IN
Material
Aluminum
Special Features
Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 20 CU-IN as per NEC 314.16(A)
Standard
UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC
781381606783
GTIN
00781381606783
Item Type
Type X Conduit Outlet Body
Configuration
X
Form Type
Form 7
Approval
UL 514A/514B, CSA C22.2, NEC, CEC
Applicable Standard
NEMA FB-1
Capacity
20 Cu Inch
Hub Location
Cross
Number of Hubs
4
Used On
Rigid Conduit/IMC
Installation
Threaded
Access Opening Side
Side
