Appleton X38 1 Type X Form 8 Body 1 IN

Product Description

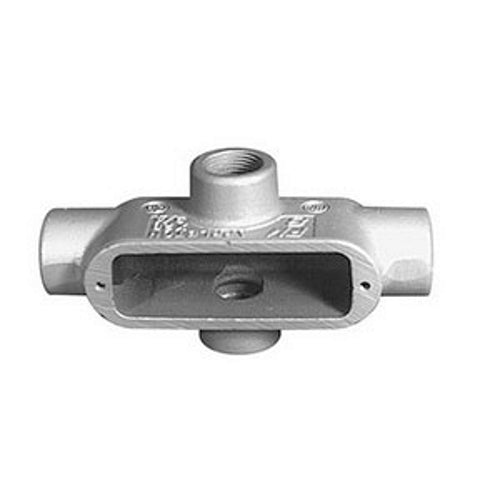

The Appleton X38 is a Type X form 8 body designed for use with rigid steel conduit and IMC installations. This conduit outlet body features a hub size of one inch and is constructed from durable Grayloy-Iron. It has a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder coat for enhanced protection. The dimensions of the outlet body are seven point five six inches in length, three point seven two inches in width, and three point two two inches in height. This product is intended for various conduit applications, providing reliable connections and support for electrical systems.

• Hub size: 1 inch
• Compatible with rigid steel conduit and IMC
• Wiring capacity of 15.5 cubic inches as per NEC 314.16(A)

Product Highlights

Use with rigid conduit for effective electrical installations.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: X38
• Hub Size: 1 IN
• Form: 8
• Material: Grayloy-Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
• Length: 7.56 inches
• Width: 3.72 inches
• Height: 3.22 inches
• Country of Origin: Mexico
• Application: For Use With Rigid Steel Conduit And IMC
