Appleton X28 3/4 TYPE X FORM 8 BODY

Product Description

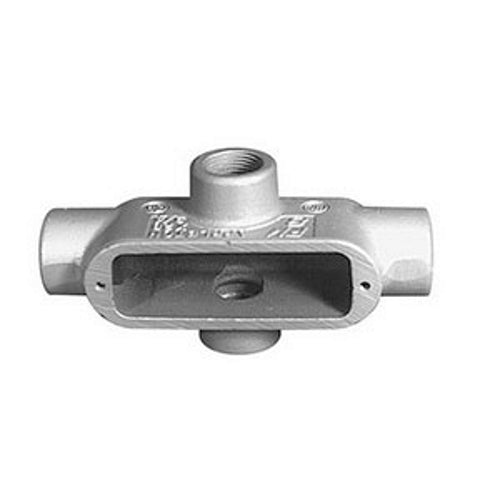

The Appleton X28 is a type X conduit outlet body designed for use in electrical installations. The part number X28 signifies its compatibility with rigid steel conduit systems. Its dimensions are six point five six inches in length, three point three one inches in width, and two point eight one inches in height. Constructed from grayloy iron, it features a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder coat for durability.

• Hub Size: Three quarter inch
• Form: Eight
• Material: Grayloy-Iron

Product Highlights

This outlet body provides a robust solution for splicing, branching, and including bends in conduit systems. It serves as a reliable connection point, allowing for changes in direction and access for maintenance.

Product Information

Standard Information

• Brand: Appleton
• MPN: X28

Technical Specifications

• Catalog Number: X28
• Manufacturer: Appleton Electric
• Hub Size: Three quarter inch
• Material: Grayloy-Iron
• Form: 8
• Application: For use with rigid steel conduit and IMC
• Length: Six point five six inches
• Width: Three point three one inches
• Height: Two point eight one inches
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Connection: Tapered female threaded
• Country of Origin: Mexico
• UPC: 781381744478
• Special Features: Serve as pulling fittings; make bends in conduit system; provide openings for splicing; connect and change direction of conduit runs; allow connections for branch runs; permit access to conductors for maintenance.
