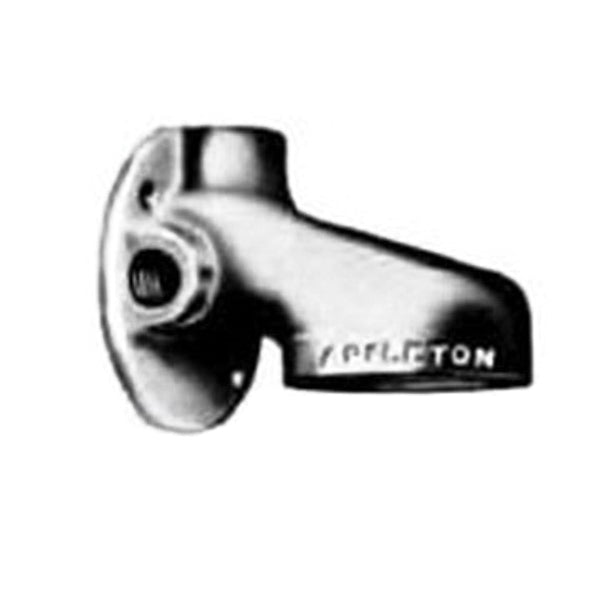

Appleton VGAT-50 Wall Mounting Hood 1/2 in Hub

Product Description

The APPLETON VGAT-50 is a wall mounting hood designed for use with V-51 series incandescent lighting fixtures. It features a 1/2 in hub and is constructed from malleable iron with a zinc plated finish. Suitable for hazardous, industrial and wet locations.

• Three hubs and one opening, 1 tapped opening in center of flange
• Incandescent lamp
• Mounting hoods for wall installations can only be used with 30 deg reflectors

Product Highlights

The Appleton VGAT-50 mounting hood is ideal for storage areas, tunnels, subways, and chemical plants.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: VGAT-50
• Country of Origin: United States

Technical Specifications

• Brand: APPLETON
• Manufacturer: Appleton
• Material: Malleable Iron
• Specifications: 1/2 in Hub
• Suitable For Use With: V-51 Incandescent Luminaries, 30 deg Angle Reflectors
• Finish: Chromate/Epoxy Powder Coat/Zinc Electroplate
• Standards: UL 1598UL 844UL File No. E10444CSA C22.2 No. 250/137CSA File No. 025428NEC Class I, Div 2, Groups A, B, C, D, CEC Class I, Div 2, Groups A, B, C, D, Class II, Div 1 and 2, Groups E, F, G, Class III
• Type: Wall Mount
• MPN: VGAT-50
• Country of Origin: United States
• Weight: 3.00 lbs
