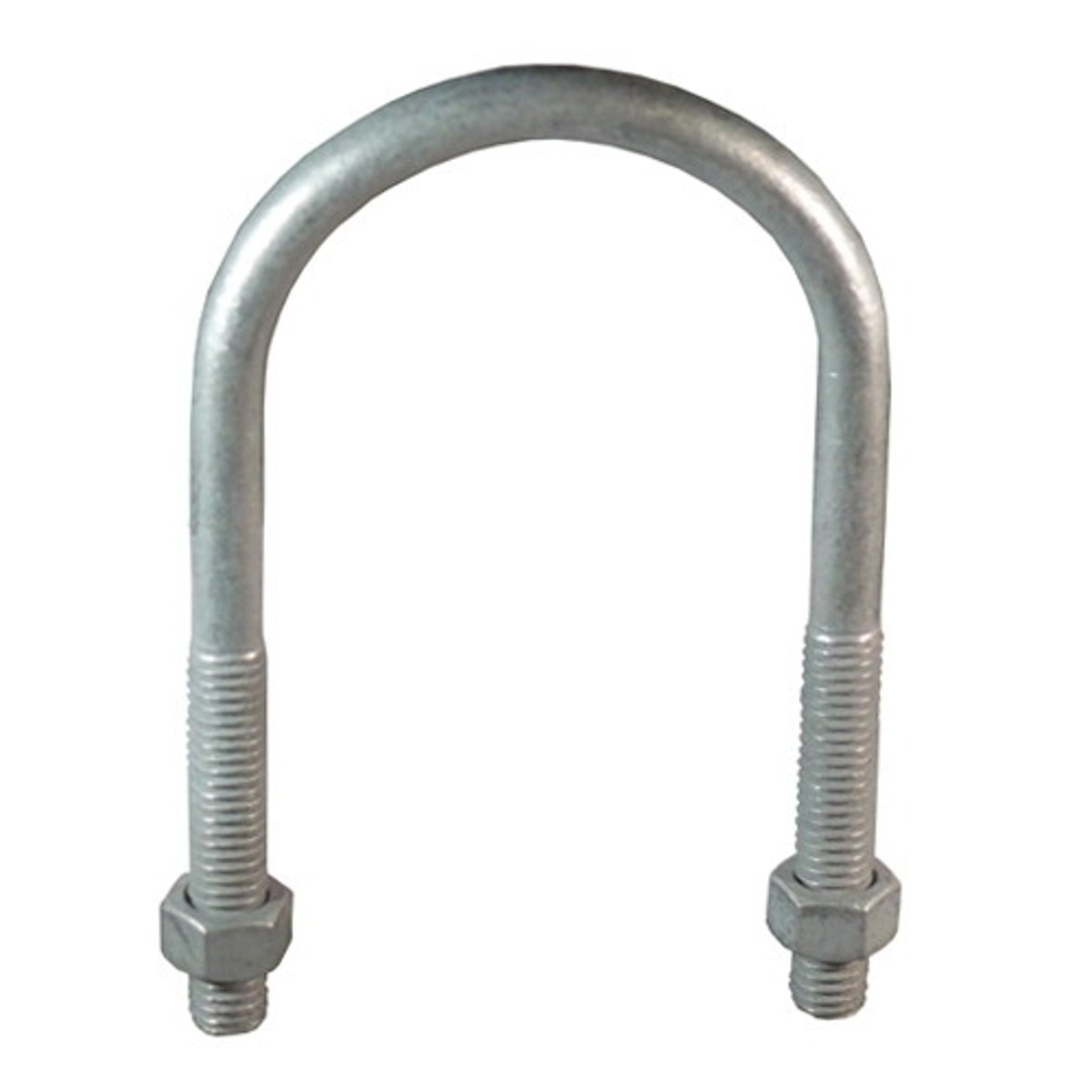

Appleton UBC400 U-Bolt 4 Inch UNC Threaded Malleable Iron Casting

Product Description

The Appleton UBC400 is a heavy-duty U-bolt designed for various electrical applications. It is made from malleable iron casting and features a mechanically galvanized finish. This U-bolt measures four inches in width and is compatible with rigid, intermediate metal conduit (IMC), and electrical metallic tubing (EMT). The UBC400 includes two hex nuts for secure fastening.

• Material: Malleable iron and steel
• Finish: Mechanically galvanized for enhanced durability
• Thread Type: UNC with a nominal diameter of three eighths inches

Product Highlights

This U-bolt offers a reliable solution for securing conduits in electrical installations. Its sturdy construction can withstand heavy loads and adverse conditions, making it ideal for commercial and industrial settings.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Country of Origin: China

Technical Specifications

• Catalog Number: UBC400
• Thread Length: Three point five seven inches
• Center Distance: Four point eight seven inches
• Thread Size: Three eighths - sixteen UNC
• Size: Four inches
• Type: Round bend
• UNSPSC: 39121701
