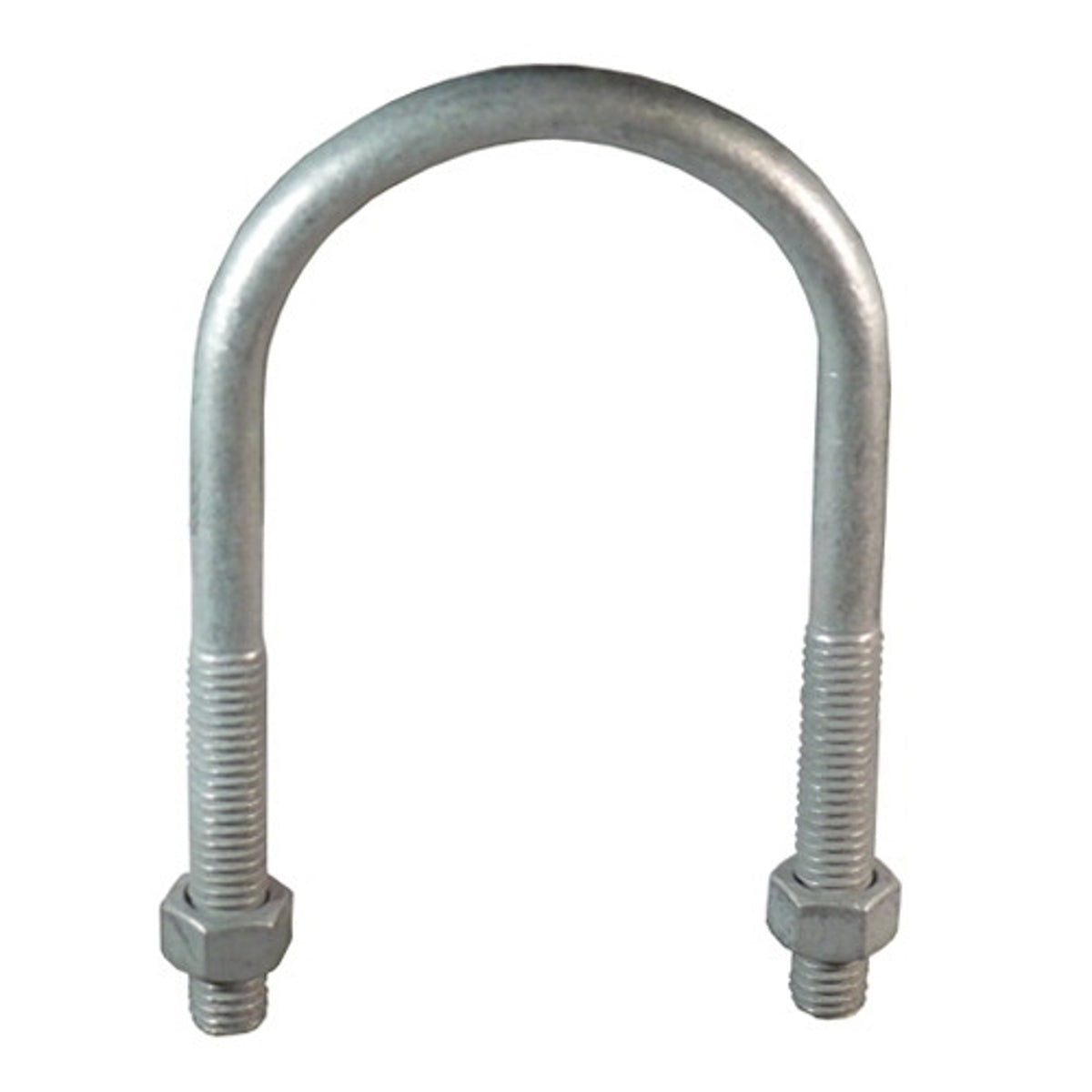

Appleton UBC250 U-Bolt with Hex Nut 2-1/2 inch

Product Description

The APPLETON UBC250 is a heavy-duty U-Bolt with Hex Nuts, designed for rigid, IMC, and EMT conduits. Constructed with malleable iron castings and steel hardware, it features a hot-dip finish on the castings and mechanically galvanized hardware. The U-Bolt easily installs and is capable of withstanding heavy loads.

• Easily installs
• Capable of withstanding heavy loads
• Includes Hex Nut

Product Highlights

Heavy-duty U-Bolt with hex nuts designed for use with rigid, IMC, and EMT conduits.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: UBC250
• Country of Origin: China

Technical Specifications

• Catalog Number: UBC250
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: China
• Made in USA: No
• Application: For Rigid, IMC And EMT
• Finish: Castings: Hot Dip; Hardware: Mechanically Galvanized
• Material: Castings: Malleable Iron, Hardware: Steel
• Special Features: Easily installs; Capable of withstanding heavy loads
• UPC: 781381314664
• GTIN: 00781381314664
• Item Type: Heavy-Duty U-Bolt With Hex Nuts
• Size: 2-1/2
• Type: Round Bend, Heavy-Duty
• Inside Width: 3.38 Inch
• Nominal Diameter: 3/8 Inch
• TPI: 16
• Thread Series: UNC
• Thread Length: 1.88 Inch
• Center Distance: 3-3/8 Inch
• Trade Size: 2-1/2 Inch
• Length from Guiding End to Bolt End: 4.75 Inch
• Includes: Hex Nut
• Used On: Rigid Conduit/IMC/EMT
• Diameter: 3/8 in
• Length: 4 3/8 in
