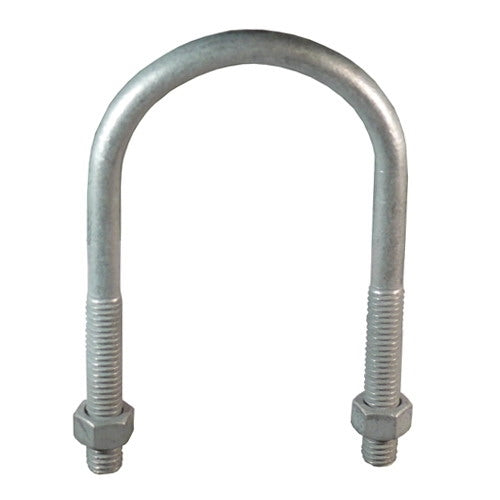

Appleton UBC125 U-Bolt With Hex Nuts 1-1/4 Inch

Product Description

The APPLETON UBC125 is a conduit U-Bolt designed for heavy-duty applications. It features a round bend and includes a hex nut for secure fastening. The U-bolt has a mechanically galvanized finish and is suitable for use on rigid conduit, IMC, and EMT. It has a trade size of 1-1/4 Inch.

• Conduit U-Bolt
• Round Bend, Heavy-Duty
• Includes Hex Nut

Product Highlights

The APPLETON UBC125 U-Bolt is mechanically galvanized and used on rigid conduit, IMC, and EMT.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: UBC125
• Country of Origin: CN

Technical Specifications

• Type: Round Bend, Heavy-Duty
• Inside Width: 2.06 Inch
• Nominal Diameter: 5/16 Inch
• TPI: 18
• Thread Series: UNC
• Thread Length: 1.5 Inch
• Center Distance: 1.89 inch
• Finish: Mechanically Galvanized
• Trade Size: 1-1/4 Inch
• Length from Guiding End to Bolt End: 3.13 Inch
• Includes: Hex Nut
• Used On: Rigid Conduit/IMC/EMT
• Material: Malleable Iron
• Application: For Rigid, IMC And EMT
• Catalog Number: UBC125
• EU RoHS Indicator: C
• Standards: RoHS CompliantCSA C22.2 No. 18.4 StandardCSA 065178
• UNSPSC: 39121701
• UPC 11: 78138131462
• UPC 12: 781381314626
• Brand: Appleton™
• Manufacturer: Appleton
• Size: 1-1/4 in
• Suitable For Use With: EMT/IMC/Rigid Metal Conduit
• Applicable Standard: CSA C22.2, CEC
• Special Features: Capable of withstanding heavy loads Easy installation
• Sub_Brand: Appleton
