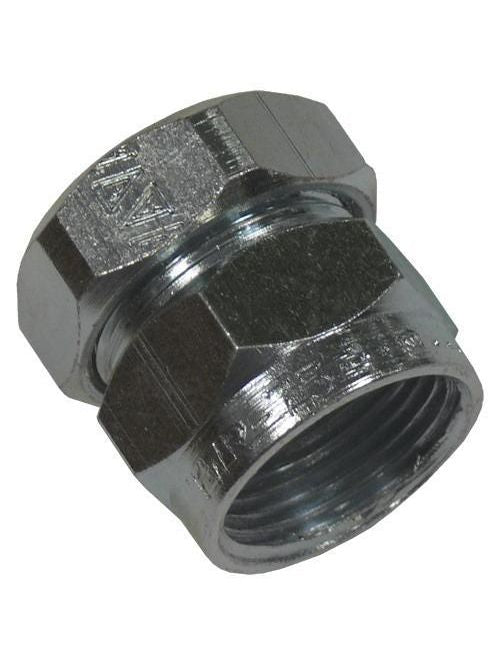

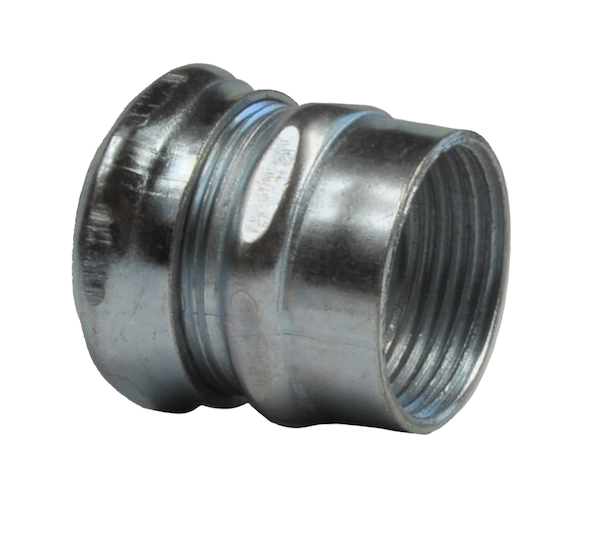

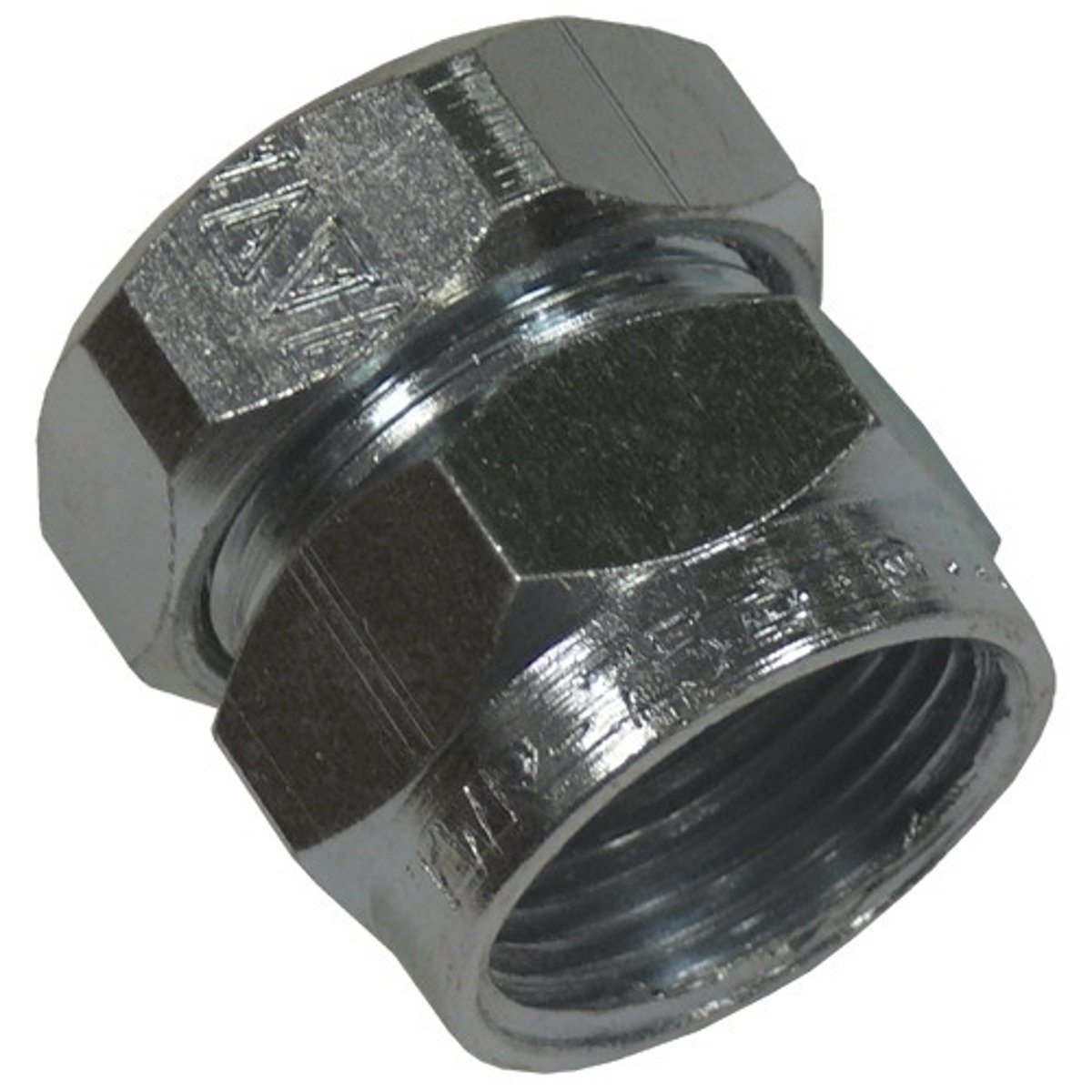

The APPLETON TWR-75 combination coupling is designed for coupling EMT to rigid metal conduit. This 3/4 inch steel coupling features a female threaded connection and is UL 514 B and NEMA FB-1 compliant. It is suitable for use in both indoor and outdoor applications.
Trade Size: 3/4 IN
Flexibility: Rigid And EMT
Material: Steel
Product Highlights
The Appleton TWR-75 ensures a secure and reliable connection between EMT and rigid metal conduit systems.
Product Information
Standard Information
Brand: APPLETON
Manufacturer Part Number: TWR-75
Country of Origin: MX
Technical Specifications
Type
Combination Coupling
Brand
Appleton™
Material
Steel
Trade Size
3/4 Inch
Applications
For Coupling EMT To Rigid Metal Conduit
TC Connection
Female Threaded
Catalog Number
TWR-75
Manufacturer
Appleton
Country of Origin
Mexico
Made in USA
No
Connection
Female Threaded
Flexibility
Rigid And EMT
Special Features
Compact design; No locknut required on the two piece connectors; Quick installations; Couplings are used to join lengths of steel EMT to various raceway systems; Connectors are used to secure and terminate steel EMT to knockouts and concrete tight box
Standard
UL 514 B, UL File Number E14895 (TWLL), E14814 (TWCC), NEMA FB-1
UPC
781381693059
GTIN
00781381693059
Item Type
Combination Coupling
Size
3/4 in
Approval
UL 514B, CSA C22.2
Used On
Rigid/EMT Conduit
ARRA Compliant
N
Buy American Compliant
N
Suitable For Use With
EMT to Rigid Metal Conduit
UNSPSC
39131707
UPC 11
78138169305
UPC 12
781381693059
Finish
Zinc Plated
Manufacturer Name
Emerson Electric
Part Number
TWR75
Application
EMT to rigid metal conduit
Design
Compact, two-piece, no locknut required
Installation
Quick, screw-in
Category
Conduit & Fittings
Section
Electrical conduit coupling
Product Series
EMT Transition Coupling
Family Series
Appleton Couplers, EMT Transition Coupling Series
Description
3/4 IN COMBINATION COUPLING
Conduit Type
EMT (Electrical Metallic Tubing) to RMC (Rigid Metal Conduit)
