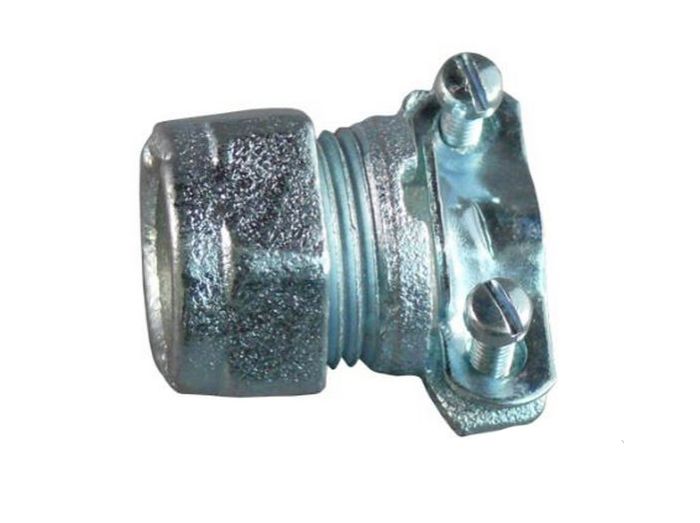

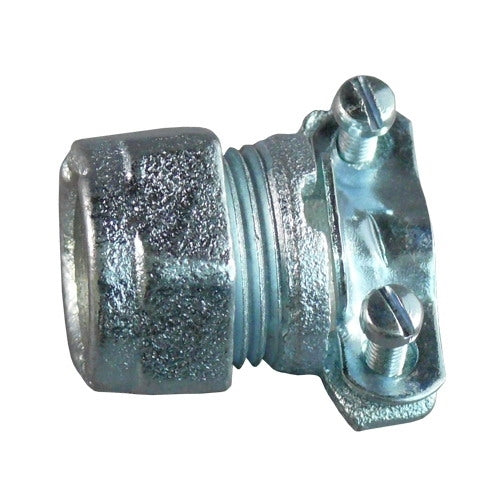

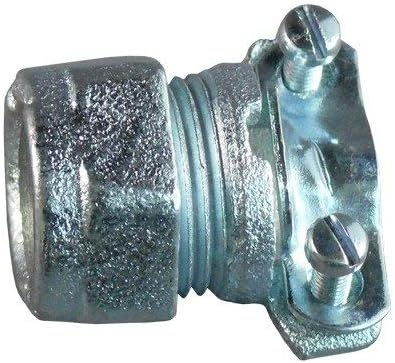

Appleton TWCC-100 1 inches Flex To Emt Coupling

Product Description

The APPLETON TWCC-100 is a 1" Flex To Emt Coupling. It is designed for EMT to flexible metal conduit connections. Constructed from malleable iron with a zinc electroplated finish, this coupling ensures certified protection for various environments. Ideal for both commercial and harsh industrial conditions, providing reliable power distribution.

• For EMT To Flexible Metal Conduit
• Compact design
• No locknut required on the two piece connectors

Product Highlights

Combination coupling designed for EMT to flexible metal conduit connections, ensuring secure and reliable performance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: TWCC-100
• Country of Origin: USA

Technical Specifications

• Brand: Appleton Electric
• Manufacturer Part Number: TWCC-100
• Manufacturer: Appleton
• Material: Malleable Iron
• Diameter: 1 in
• Insulation: Non-Insulated
• Application: For EMT To Flexible Metal Conduit
• ARRA Compliant: Y
• Buy American Compliant: N
• Catalog Number: TWCC100
• Connection: Compression
• Country of Origin: MX
• Dimensions: 1.88 in OD x 2.03 in L
• EU RoHS Indicator: N
• Flexibility: Flexible And EMT
• Height: 0.70 in
• Length: 6.60 in
• Outside Diameter: 1.88 in
• Standards: ARRA CompliantUL 514BUL File No. E14895UL File No. E14814
• Trade Size: 1 in
• Type: Combination Coupling
• UNSPSC: 39131707
• Width: 5.00 in
• Finish: Zinc Plated
• Size: 1 in
• Suitable For Use With: EMT to Flexible Metal Conduit
• Product Series: EMT Transition Coupling
• Family Series: Appleton Couplers, EMT Transition Coupling Series
• Conduit Type: EMT (Electrical Metallic Tubing) to FMC (Flexible Metallic Conduit)
• Connection Type: Squeeze Clamp to NPT Thread
• Grounding: No
• Protection Rating: Indoor, Outdoor
• Composition: Malleable Iron
• NEMA Rating: NEMA FB-1
• Hazardous Location: No
• Approvals: UL
• Net Weight: 0 lbs
• Gross Weight: 0.44 lbs
