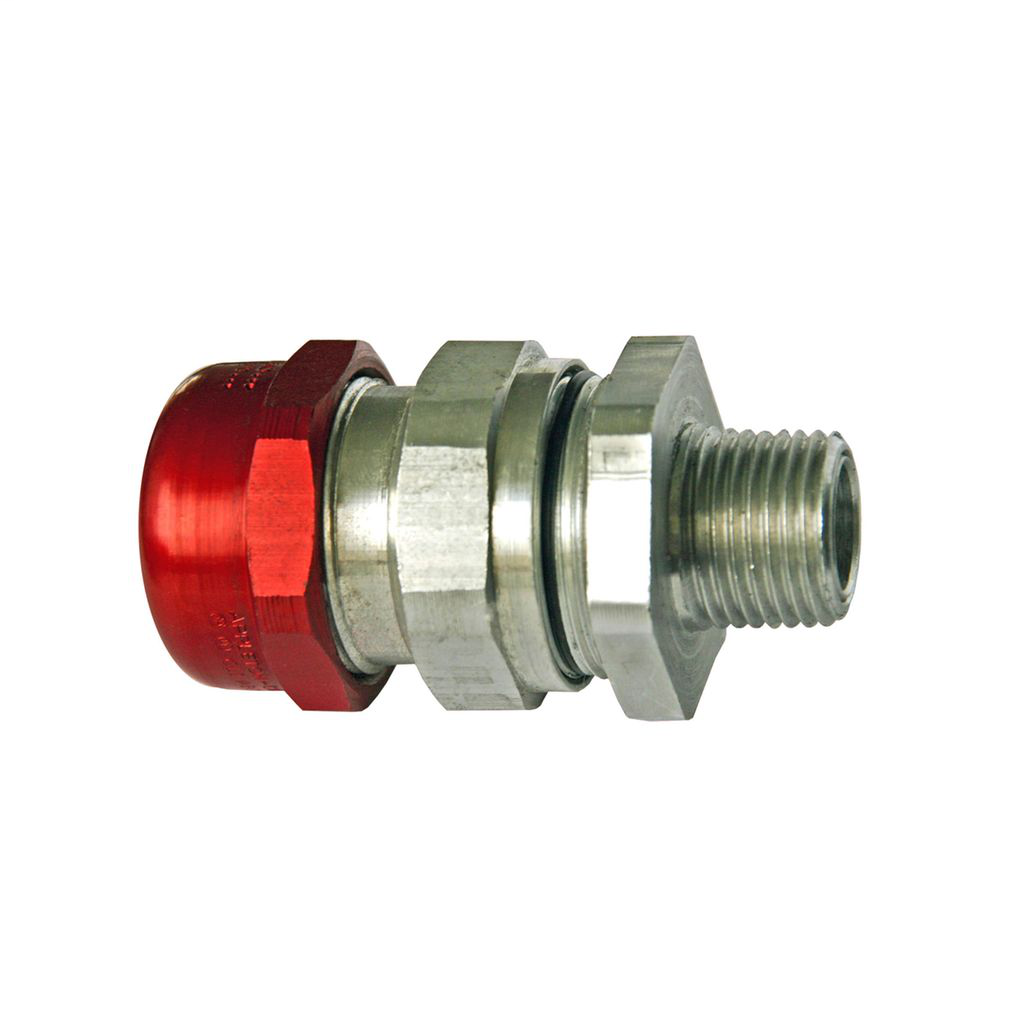

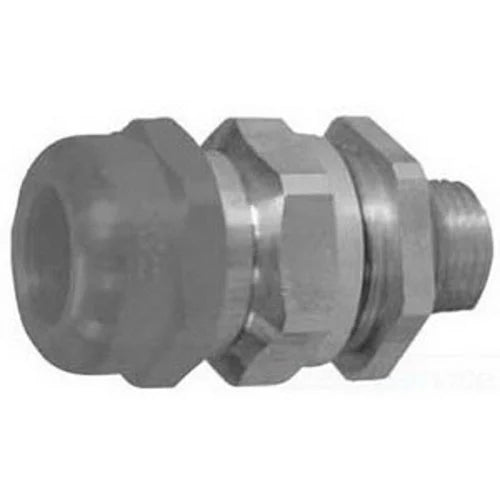

Appleton TMCX075A 3/4 Aluminum Metal Clad Connector

Product Description

The Appleton TMCX075A is a three-quarter-inch hazardous location aluminum connector. This connector is designed for use with jacketed type MC cable. It creates a mechanical watertight connection and ensures ground continuity for the cable armor. It is suitable for hazardous locations and can be implemented in various installation environments.

• Compatible with MC/MCHL and TECK cables.
• Independent sealing and armor clamping.
• True 360-degree grounding.

Product Highlights

This connector provides a reliable solution for connecting armored cable in both horizontal and vertical runs.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Type: TMCX Series Cable Gland Connector
• Size: 3/4 Inch (M25)
• Material: Copperfree Aluminum
• Enclosure Rating: IP66
• NEMA Rating: 4X
• Connection: NPT
• Dimensions: 2.79 Inches in length
• Cable Armor Diameter: 0.59 to 0.76 Inches (End Stop In), 0.76 to 0.92 Inches (End Stop Out)
