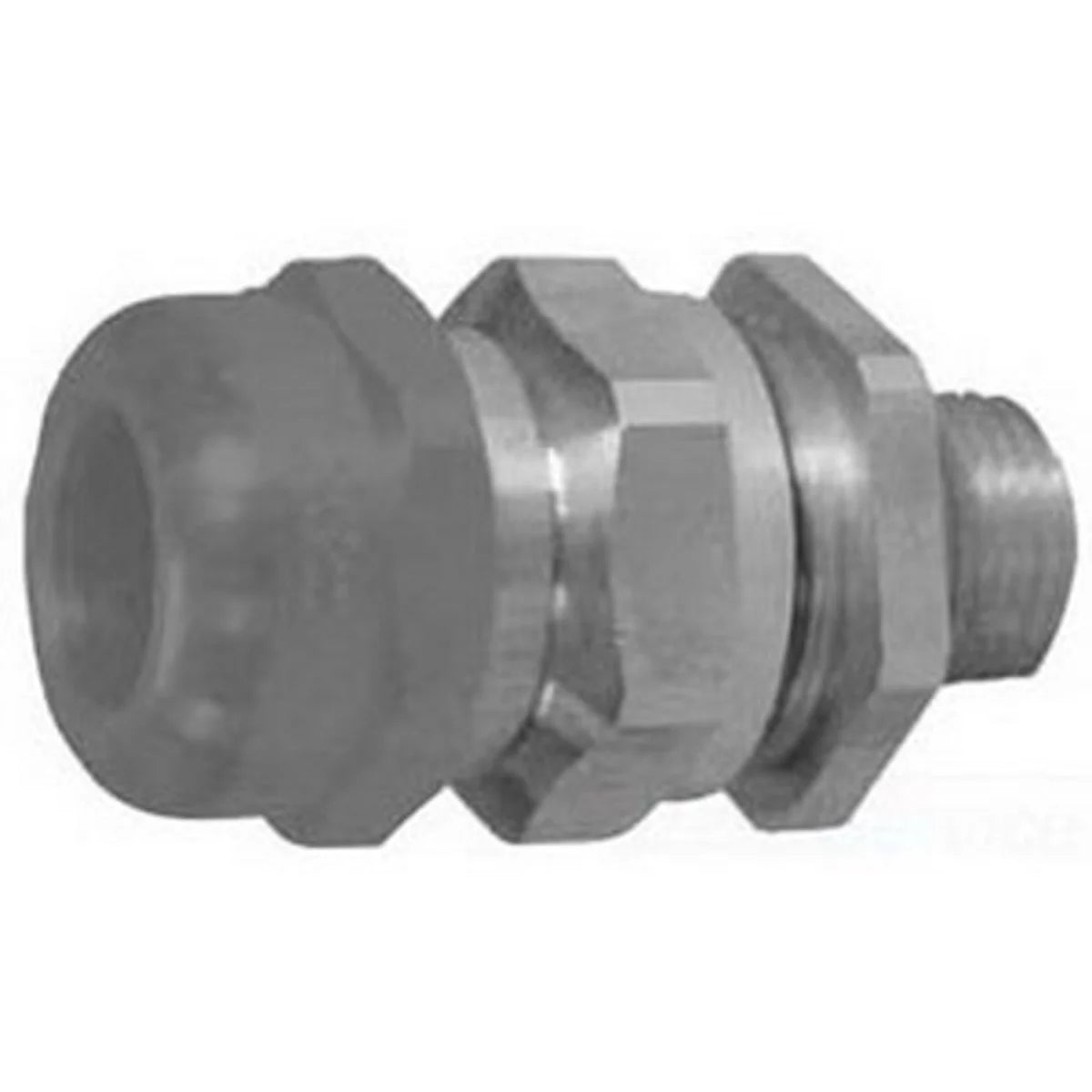

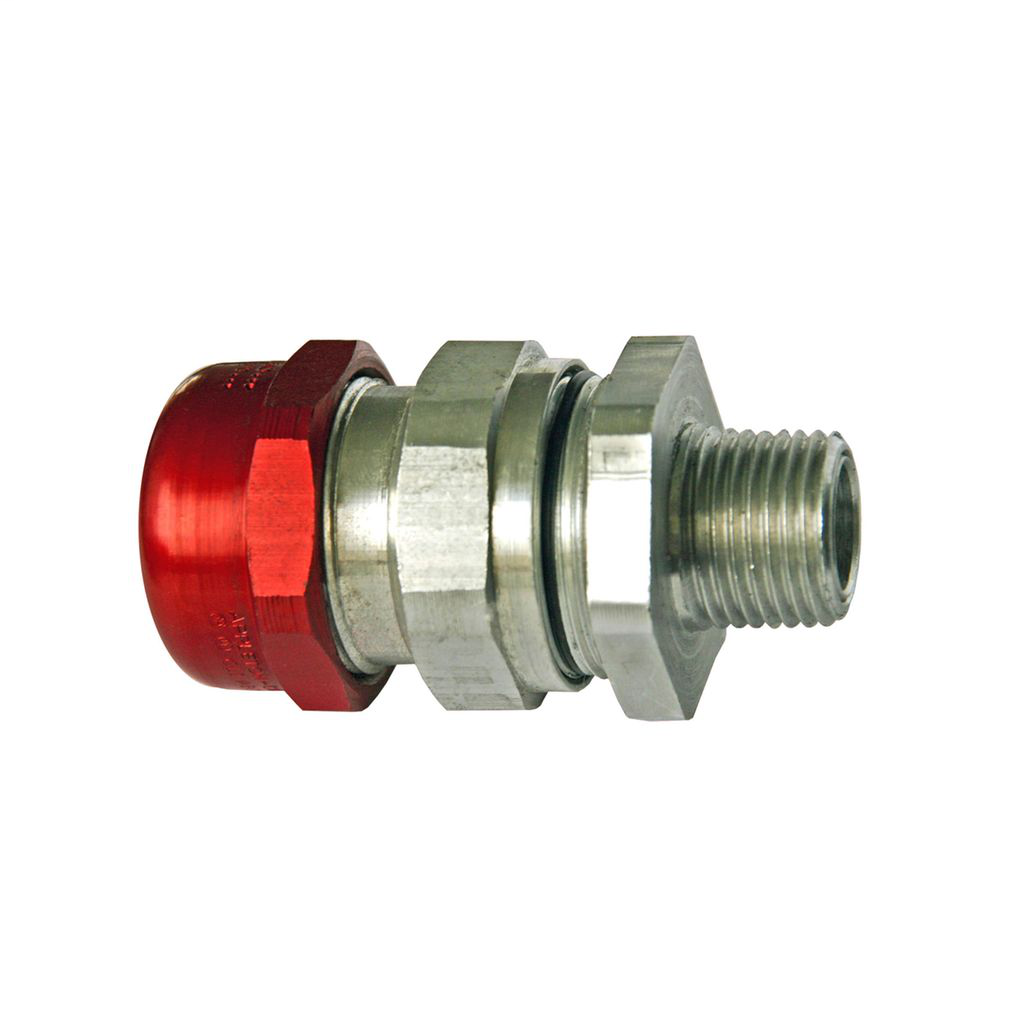

Appleton TMCX050A 1/2 Inch Hazardous Location Aluminum Connector

Product Description

The Appleton TMCX050A is a cable gland connector designed for use with jacketed type MC cables. It forms a mechanical and watertight connection for various armored cables.

• Manufactured from copper-free aluminum.
• Rated for IP66, ensuring protection against dust and water.
• Suitable for hazardous locations with a 360-degree grounding system.

Product Highlights

This connector is ideal for horizontal or vertical applications. It includes an integral deluge proof seal providing protection in extreme environments.

Product Information

Standard Information

• Brand: Appleton
• Country of Origin: India

Technical Specifications

• MPN: TMCX050A
• Type: Straight
• Material: Copper-free aluminum
• Enclosure: IP66
• Trade Size: 1/2 Inch
• Applications: Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armor, Continuously Welded Armor Cable
• Connection Type: NPT
• Cable Size Acceptance: From 0.55 to 0.79 inches
