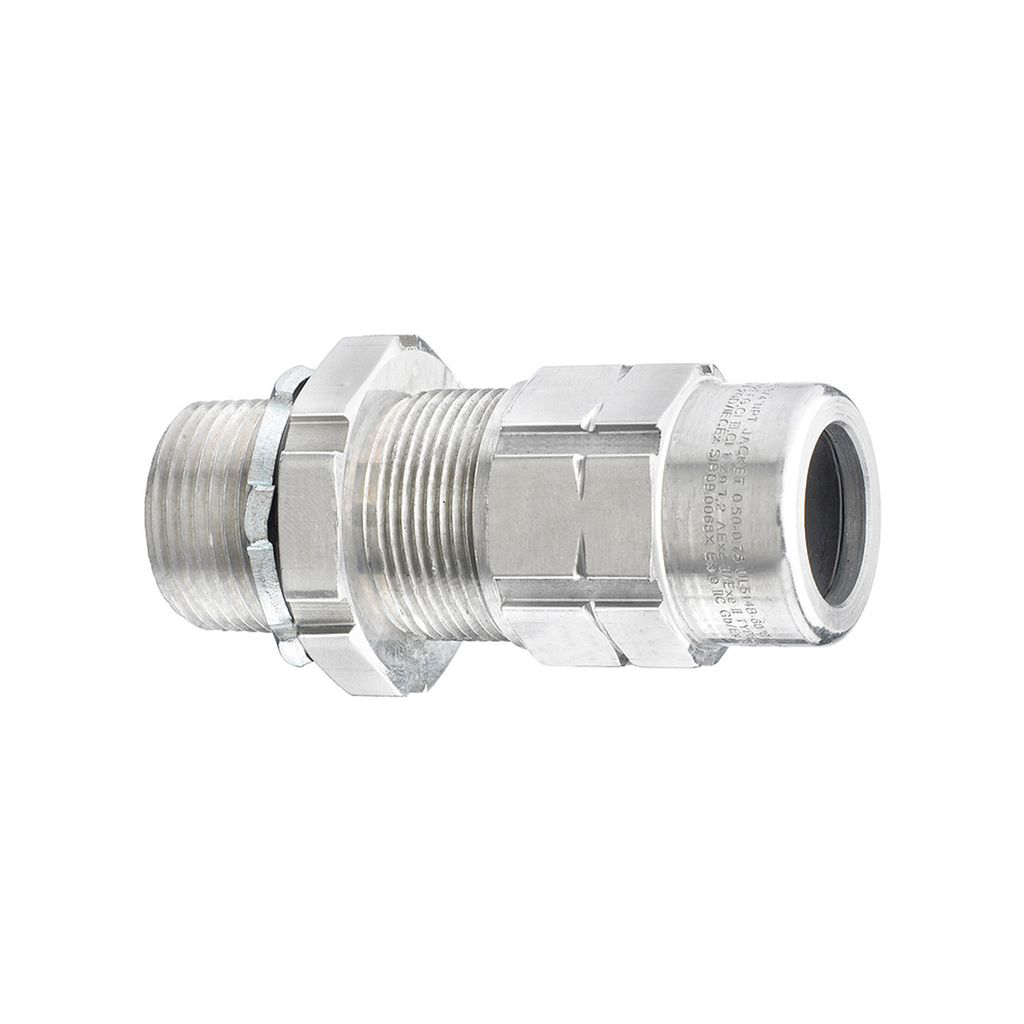

Appleton TMC2-250272A 2-1/2 TMC2 Connector for Jacketed Metal Clad Cable Replacement TMC2-250272A

Product Description

Appleton TMC2-250272A is a two-piece cable gland connector designed for jacketed metal clad cables. The connector ensures a watertight seal and ground continuity for cable armor. It is suitable for use with MC cables and corrugated interlocked aluminum or steel armor. This connector features a copper-free aluminum construction and provides a secure installation.

• Simplified two-piece design for easy installation
• IP66 rated for dust and moisture protection
• Wide temperature range from negative sixty degrees Celsius to one hundred ten degrees Celsius

Product Highlights

The TMC2 connector offers reliable performance in harsh environments, ensuring safety and durability while maintaining effective cable management.

Product Information

Standard Information

• Brand: Appleton
• MPN: TMC2-250272A

Technical Specifications

• Size: 2-1/2 inches
• Material: Copper-free aluminum
• Enclosure Rating: IP66
• NEMA Rating: 4X
• Temperature Rating: -60 to 110 degrees Celsius
• Connection Type: NPT
• Catalog Number: TMC2-250272A
• Application: For jacketed metal clad, MC/MC-HL cables
