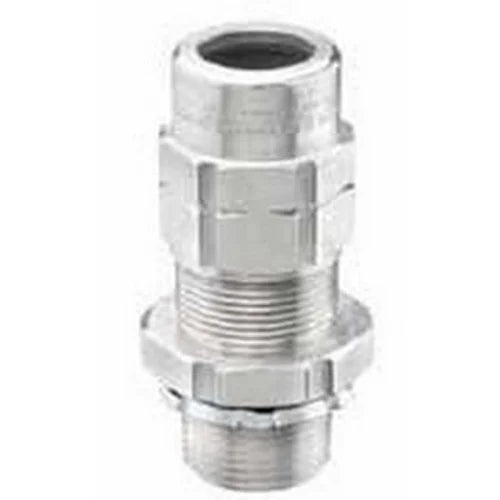

Appleton TMC2-150162A 1-1/2 IN IND MC CONN ALUM

Product Description

The Appleton TMC2-150162A is a 1-1/2 inch indoor MC connector made from copper-free aluminum. This connector is designed to provide a watertight seal and ground continuity for jacketed metal cable systems. It meets NEMA 4X and IP66 specifications, making it suitable for both indoor and outdoor environments. With a temperature rating of minus sixty to one hundred ten degrees Celsius and an NPT connection, this connector serves a wide range of applications in hazardous locations.

• Size: 1-1/2 inches
• Material: Copper-free aluminum
• Enclosure: IP66

Product Highlights

The TMC2-150162A connector is ideal for jacketed metal-clad and armored cable applications, ensuring robust performance in challenging environments.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: TMC2-150162A

Technical Specifications

• Connection: NPT
• Material: Copper-free aluminum
• NEMA Rating: 4X
• Enclosure: IP66
• Temperature Rating: -60 to 110 degrees Celsius
• Dimensions: 2.36 inches across flat x 2.55 inches across corner
• Application: Suitable for jacketed metal clad, MC/MC-HL, corrugated interlocked aluminum/steel armor, continuously welded armor cable
