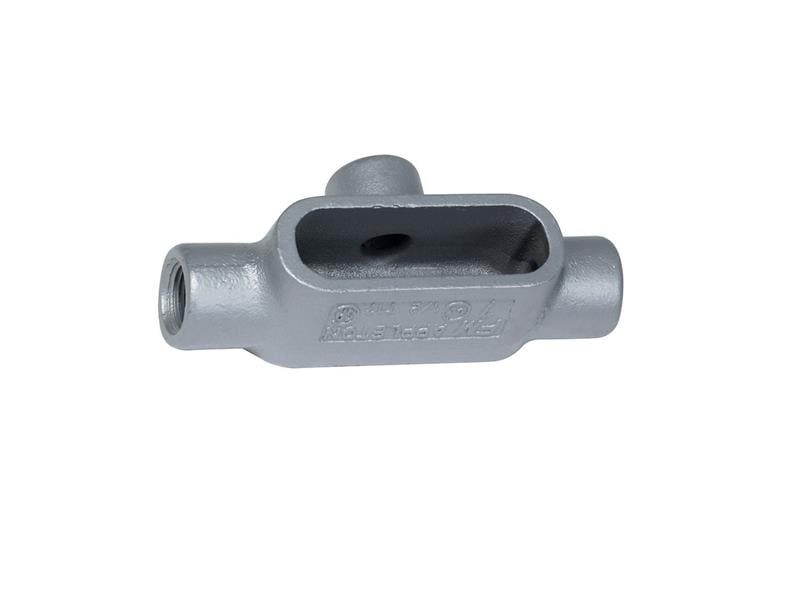

Appleton T77-SA fm7 Body Type T 2-1/2 Inch

Product Description

The APPLETON T77-SA FM7 conduit outlet bodies connect and change the direction of conduit runs. They facilitate bends and branch run connections in conduit systems. These conduit bodies serve as pulling fittings and allow access to conductors for splicing and maintenance.

• Smooth, rounded integral bushing in hubs protects conductor insulation.
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity.
• Flat back design provides greater cubic content for easier wire pulling, and more room for splicing.

Product Highlights

Appleton T77-SA conduit bodies are suitable for rigid steel, aluminum, and IMC conduit applications. They feature a durable cast aluminum construction with an epoxy powder-coated finish.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: T77-SA
• Country of Origin: MX

Technical Specifications

• Hub Size: 2-1/2 Inch
• Capacity: 102 cu-in
• Form: Form 7
• Enclosure: NEMA FB-1
• Connection Type: Tapered FNPT
• Mounting Type: Surface
• Material: Epoxy Powder Coated Copper Free Cast Aluminum Body, Neoprene Gasket, Stainless Steel Cover Screw
• Finish: Epoxy Powder Coated
• Number of Hubs: 3
• Application: Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductors for Maintenance
• Access Opening Side: Side
• Configuration: T
• Cover Type: Epoxy Powder Coated Copper Free Cast Aluminum
• Hub Location: Tee
• Installation: Threaded
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Family / Style: Form 7
• Type: Type T
• Category: Conduit/Fitting
