Appleton T400-M T400M APN 4 in

Product Description

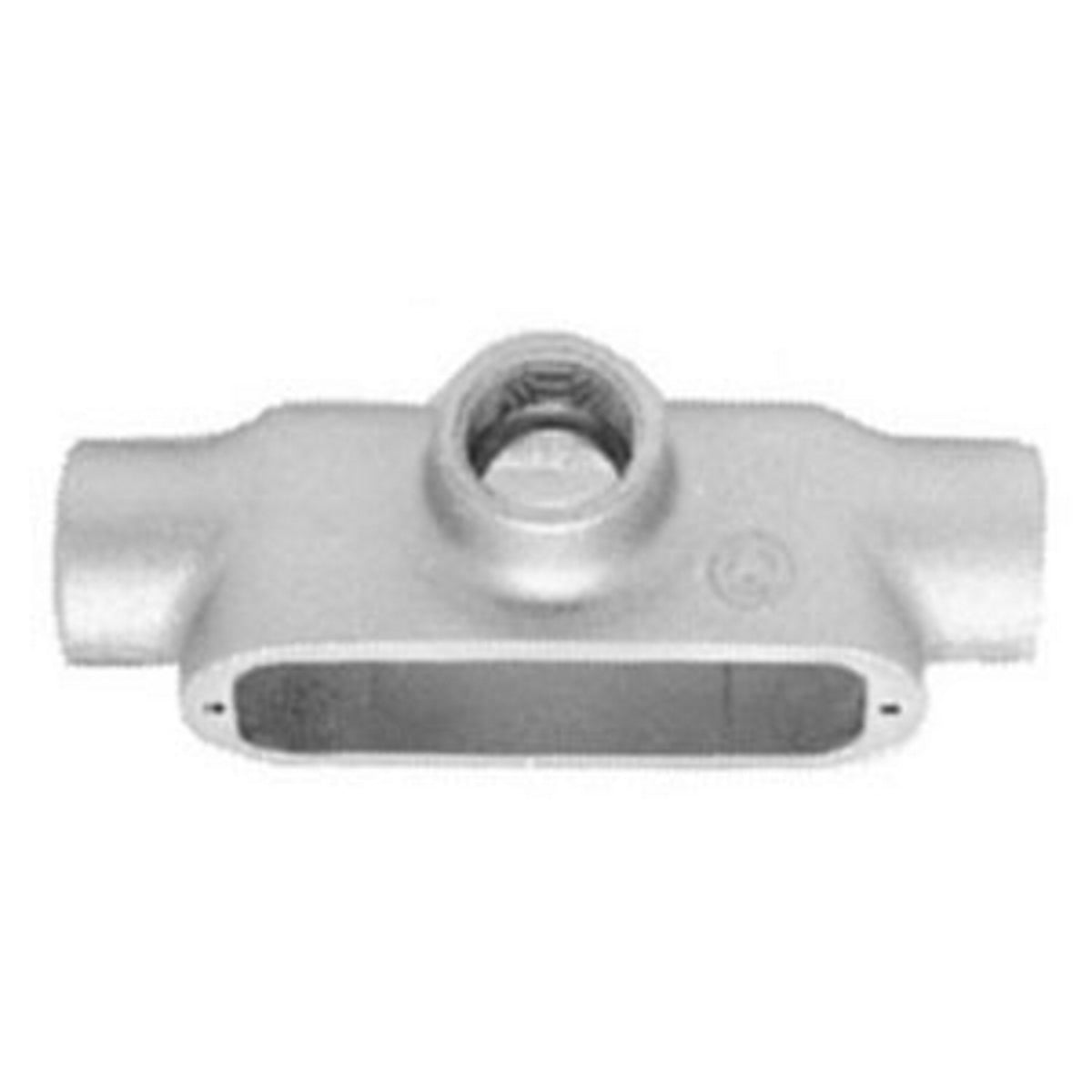

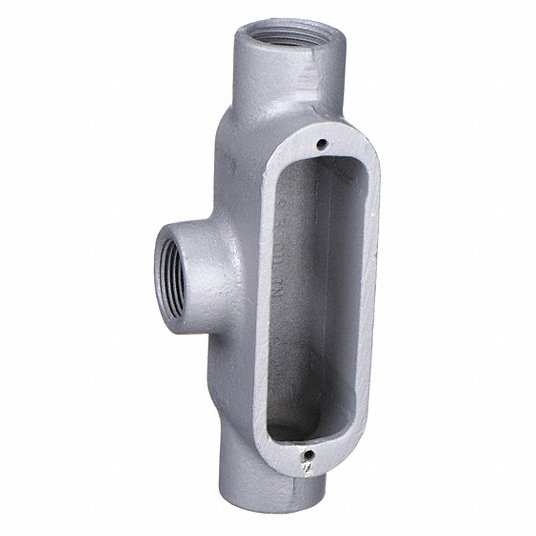

The Appleton T400-M T400M APN is a malleable iron conduit outlet body used to connect and change the direction of conduit runs. It allows connections for branch runs and serves as a pulling fitting, permitting access to conductors for splicing and maintenance. It is NEMA FB-1 rated and suitable for rigid steel, aluminum, and IMC conduit.

• Smooth, rounded integral bushing in hubs protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• High tensile strength and ductility, high corrosion resistance, high impact and shock resistance

Product Highlights

This malleable iron conduit outlet body features a triple-coated finish and a 4-inch hub size. It is ideal for use in rigid conduit systems.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: T400-M
• Country of Origin: Mexico

Technical Specifications

• Form: Form 35
• Finish: Triple Coated
• Capacity: 345 cu-in
• Material: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron Body, Fiber/Neoprene Gasket, Stainless Steel Screw
• Enclosure: NEMA FB-1
• Mounting Type: Surface
• Number of Hubs: 3
• Connection Type: Tapered FNPT
• Application: For Rigid Steel/Aluminum and IMC Conduit
• Catalog Number: T400-M
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
• UPC: 781381688550
• GTIN: 00781381688550
• Item Type: Type T Conduit Outlet Body
• Height: 5.56 Inch
• Hub Size: 4 Inch
• Configuration: T
• Cover Type: Electro Zinc Plated Dichromate Epoxy Powder Coated Malleable Iron
• Hub Location: Tee
• Installation: Threaded
• Form Type: Form 35
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Product Series: Form 35 Malleable Iron
• Family Series: Appleton Conduit Outlet Bodies, Form 35 Malleable Iron Series
• Description: Form 35 UNILETS Type T Conduit Outlet Body, Hub Size: 4 IN, Form: 35, Height: 5.56 IN, Material: Malleable Iron, Finish: Triple-Coat Zinc Electroplate, Chromate And Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514
• Style: Threaded Iron
• Shape: T
• Cover Included: No
• Gasket Included: No
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Trade Size: 4 "
• Composition: Malleable Iron
• Hazardous Location: No
• Approvals: CSA, UL
• Applications: For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
• TC Connection: Tapered Female Threaded
• Type: Type T Conduit Outlet Body
• Unilet: Unilet
• 12-Digit UPC: 781381688550
• Chromate/Epoxy Powder-Coated/Zinc Electroplated: Chromate/Epoxy Powder-Coated/Zinc Electroplated
• Product UPC: 78138168855
• Used With: Rigid Steel, Rigid Aluminum Conduit, IMC and EMT Conduit
• Diameter: 4 in
• Compatible Conduit Type: IMC; RMC
• Compatible Conduit Trade Size: 4 in
• Body Style: T
• Connection Orientation: Multi-Angle
• Threaded: Threaded
• Body Capacity: 340 cu in
• Thread Size: 4 in
• Thread Gender: Female
• Thread Type: NPT
