Appleton T200 Conduit Outlet Body

Product Description

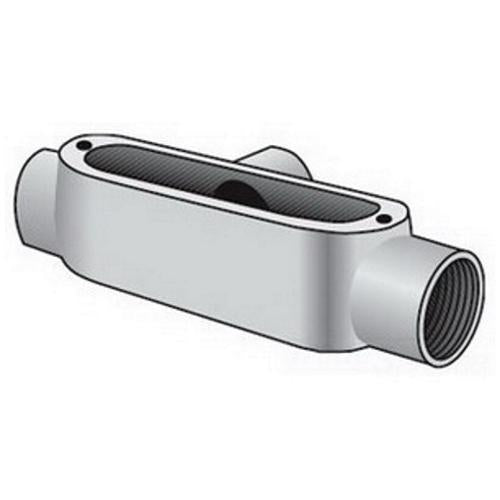

The APPLETON T200 Conduit Outlet Body, a Spec 5 Type T conduit body with a 2-inch hub and 3 hubs, provides a 70 cu-in capacity. Constructed from malleable iron with an aluminum enamel/zinc electroplated finish, it measures 11-7/8 in L x 3-1/2 in H and is designed for rigid/IMC conduit applications.

• Features a smooth, rounded integral bushing in hubs to protect conductor insulation.
• Offers accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity.
• Constructed from Form 35 malleable iron for high tensile strength and ductility.

Product Highlights

Ideal for rigid/IMC conduit applications, ensuring durability and reliable performance in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: T200
• Country of Origin: MX

Technical Specifications

• Capacity: 70 cu-in
• Dimensions: 11-7/8 in L x 3-1/2 in H
• Enclosure: NEMA FB-1
• Finish: Aluminum Enamel/Zinc Electroplated
• Hub Size: 2 in
• Type: Type T
• Connection type: Tapered FNPT
• Country of origin: MX
• Material: Malleable Iron
• Mounting type: Surface
• Manufacturer Name: Emerson Electric
• UNSPSC: 39131708
