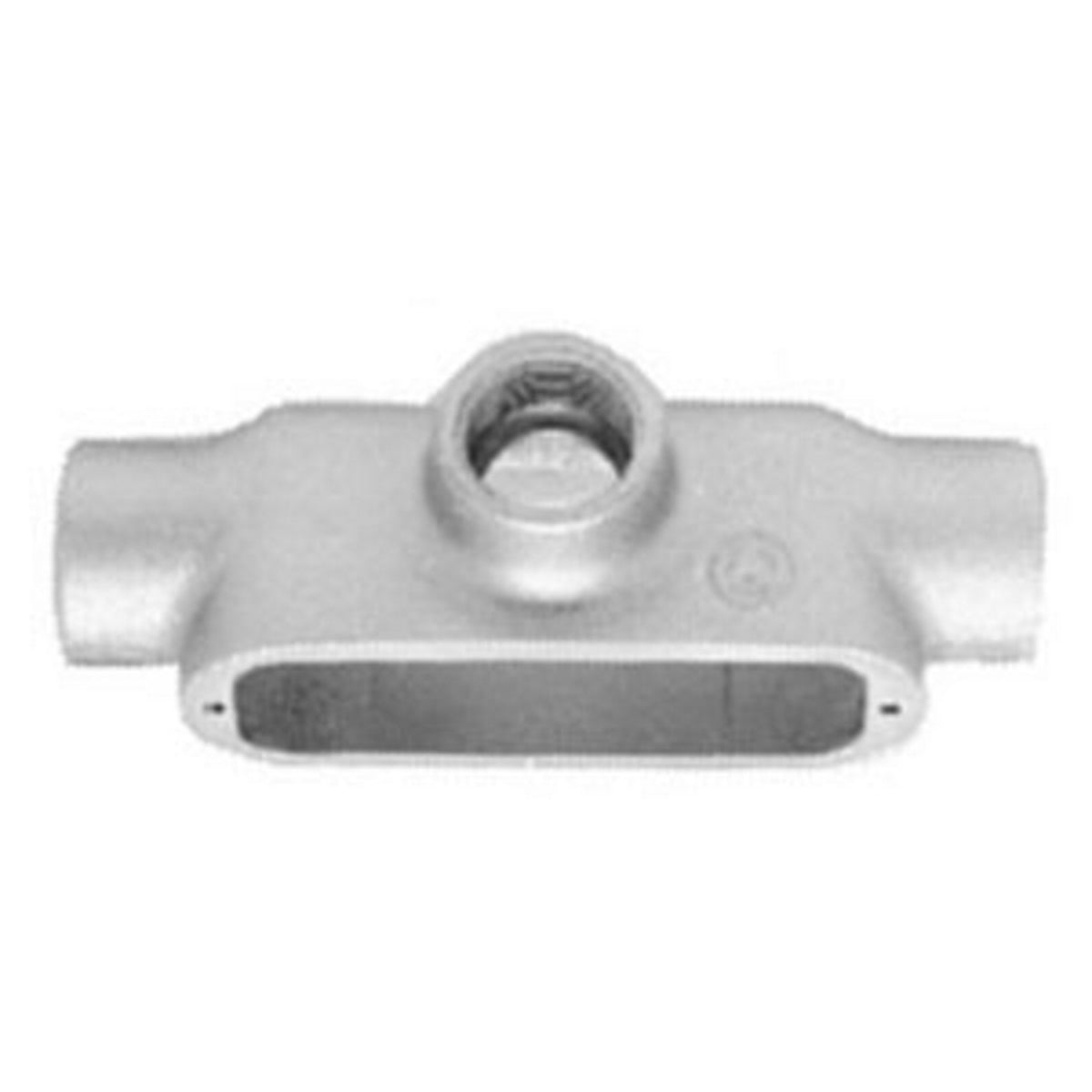

Appleton T100-M Unilet Form 35 Type T Conduit Body 1 In

Product Description

The Appleton T100-M Unilet Form 35 Type T Conduit Body is designed for electrical installations requiring a robust and reliable conduit outlet solution. This product is compatible with rigid steel and aluminum conduit as well as IMC. It features a hub size of one inch and a height of two and one-quarter inches.

• Material: Malleable Iron
• Finish: Triple-Coated for corrosion resistance
• Connection Type: Tapered Female Threaded

Product Highlights

This conduit body allows for easy installation and enables bending of conduit systems while providing access for maintenance. It meets UL 514A and UL 514B standards.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: T100-M

Technical Specifications

• Hub Size: 1 Inches
• Height: 2.25 Inches
• Application: For use with Rigid Steel, Rigid Aluminum Conduit and IMC
• Special Features: Provides openings for splicing and allows for bends in the conduit system
• Number of Hubs: 3
• Capacity: 15 CU-IN as per NEC 314.16(A)
• Standards: UL 514A, UL 514B, CSA C22.2 No. 18.3
