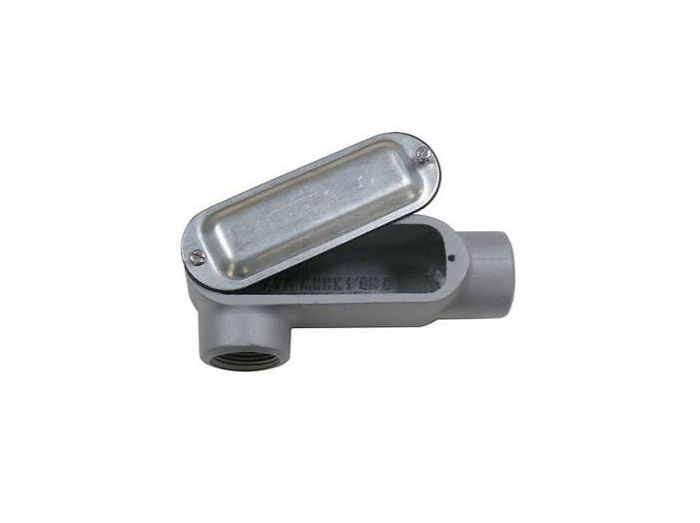

Appleton T-75CG Conduit Outlet Body 3/4 inches

Product Description

The APPLETON T-75CG Conduit Outlet Body, also known as a Spec 5 Conduit Outlet Body, features a 3/4 in hub and a 9.5 cu-in capacity. Meeting NEMA FB-1/FB-2.1 enclosure standards, it is designed for rigid/IMC conduit applications. Constructed from malleable iron with an aluminum enamel finish, it measures 6-1/8 in L x 1-5/8 in H.

• Smooth, rounded integral bushing in hubs protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
• Form 35 malleable iron UNILETS are high tensile strength and ductility

Product Highlights

Designed for durability and ease of installation, this conduit outlet body ensures reliable performance in various environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: T-75CG

Technical Specifications

• Brand: Appleton
• Part Number #: T75CG
• SKU #: 1661284
• Capacity: 9.5 cu-in
• Enclosure: NEMA FB-1/FB-2.1
• Finish: Aluminum Enamel
• Hub Size: 3/4 in
• Type: Type T
• Connection type: Tapered FNPT
• Material: Malleable Iron
• Manufacturer Name: Emerson Electric
• Manufacturer Part Number: T75CG
• Manufacturer: Appleton
• Product Series: Spec 5
• Family Series: Appleton Conduit Outlet Bodies, Spec 5 Series
• Description: 3/4 IN BODY/CVR/GSKT ASSY T
• Style: Threaded Iron
• Shape: T
• Number of Hubs: 3
• Cover Included: Yes
• Gasket Included: Yes
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 3/4 "
• Composition: Iron
• Hazardous Location: Yes
• Approvals: CSA, UL
