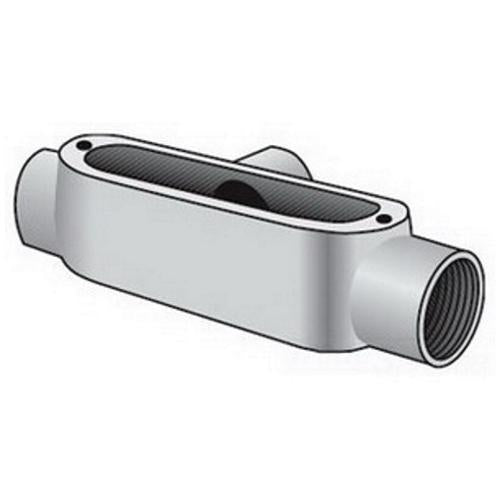

Appleton T-100 Conduit Body Type T 1 in

Product Description

The APPLETON T-100 is a 1 in iron conduit body, Type T. It provides access to conductors for pulling, splicing, maintenance, and future changes or upgrades. It allows connection of straight conduit runs, branch conduit runs, and 90-degree bends. Zinc electroplated with aluminum enamel.

• Serves as pulling fittings
• Makes bends in conduit system
• Provides openings for splicing
• Connects and changes direction of conduit runs
• Allows connections for branch runs
• Permits access to conductors for maintenance

Product Highlights

The Appleton T-100 conduit outlet body is made of malleable iron and is suitable for use in concrete. It features tapered threaded hubs (NPT) and is raintight when used with gasketed covers.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: T-100
• Country of Origin: MX

Technical Specifications

• Manufacturer: Appleton
• Part Number #: T100
• SKU #: 2377694
• Capacity: 12 cu-in
• Enclosure: NEMA FB-1/FB-2.1
• Finish: Zinc Plated
• Hub Size: 1 in
• Type: Type T
• Connection type: Tapered FNPT
• Material: Malleable Iron
• Manufacturer Name: Emerson Electric
• UNSPSC: 39131708
