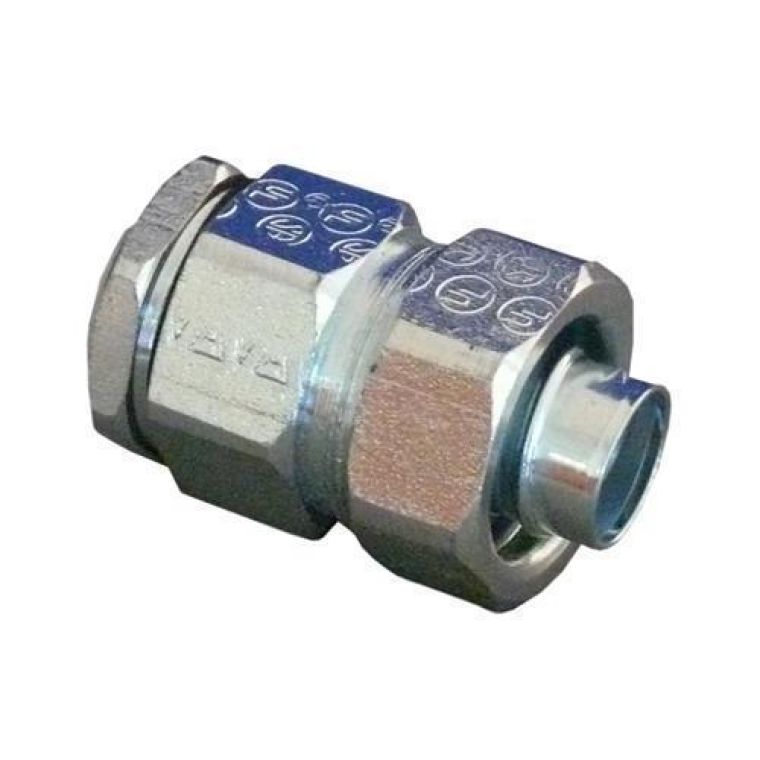

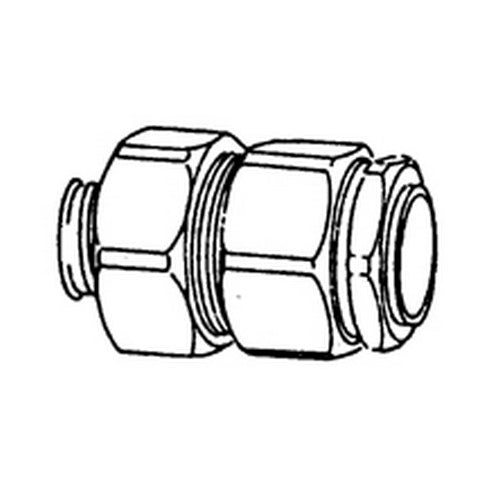

Appleton STN-38 STN Series Straight Liquidtight Connector 3/8 IN

Product Description

The APPLETON STN-38 is a STN Series straight liquidtight connector. Designed for use with liquid tight flexible metallic conduit, this connector features a unique long ferrule with pronounced threads, exceeding UL pull out requirements. The space saving hex hub wedge adapter fits nearly flush against inside walls of enclosures.

• Provides maximum surface contact for better sealing.
• Offers continuous, permanent, positive metal to metal ground.
• Suitable for wet locations.

Product Highlights

Appleton STN-38 liquidtight connector ensures a secure and reliable connection for liquidtight flexible metal conduit.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STN-38
• Country of Origin: MX

Technical Specifications

• Series: STN
• Angle: Straight
• Finish: Zinc Electroplated
• Material: Steel
• Trade Size: 3/8 in
• Country of Origin: MX
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Brand: Appleton Electric
• MPN: STN-38, STN38
• Product Series: Liquidtight STN
• Family Series: Appleton Fittings, Liquidtight STN Series
• Conduit/Cable Type: LFMC (Liquid Tight Flexible Metallic Conduit)
• Connection Type: Hub
• Hub Size: 1/2 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• Hazardous Location: Yes
• Approvals: CSA, UL
• Size: 3/8 IN
• Type: STN Series Straight Liquidtight Connector
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Connection Orientation: Straight
• Enclosure Rating: Concretetight / Oiltight / Raintight
• Enclosure Rating Specs: UL 514B
• Fitting Type: Connector
• Hazard Rating Specs: Class I, Division 2
• Insulated: Yes
• Specifications Met: UL 514B, Class I, Div 2, CSA 065178, CSA C22.2 No. 18.3, UL File No. E14814
