Appleton STB-45200L 2 45D Insul LFMC

Product Description

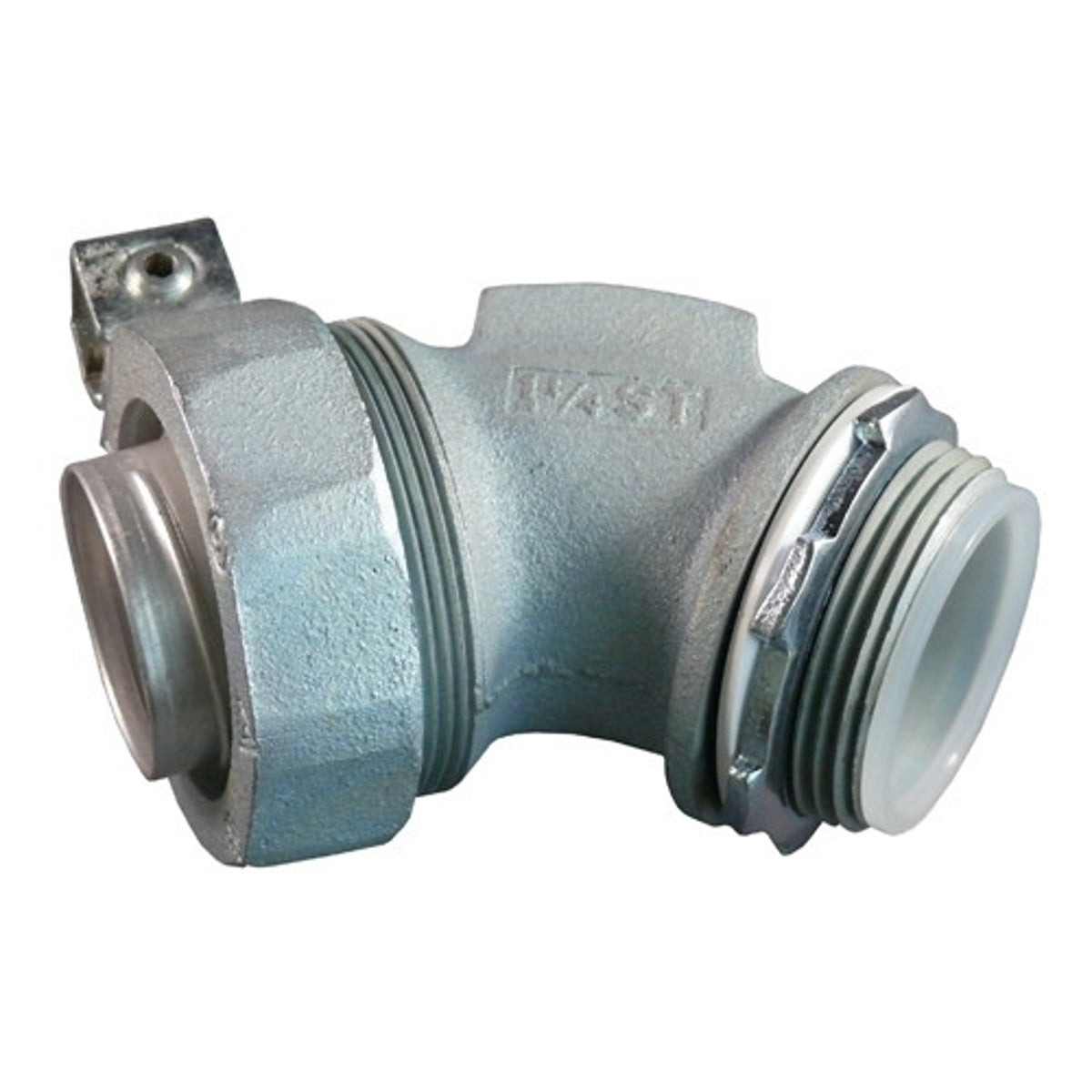

The Appleton STB-45200L is a two-inch 45-degree liquidtight connector designed for use with flexible metal conduit. This connector features a threaded x compression connection method and accommodates a conductor range from eight to one-aught American Wire Gauge (AWG). It is constructed from malleable iron with a finish combining chromate and epoxy powder coat, ensuring durability and resistance to corrosion.

• Conductor range: 8 - 1/0 AWG.
• Threaded X compression connection.
• Material: Malleable iron with chromate and epoxy powder coat finish.

Product Highlights

This product is ideal for applications involving liquidtight flexible metal conduit, making it suitable for outdoor, commercial, and industrial environments. With UL467 and CSA C22.2 approvals, it meets necessary standards for safety and performance.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: STB-45200L

Technical Specifications

• Size: 2 inches
• Connection: Threaded X compression
• Material: Malleable iron
• Finish: Chromate, epoxy powder coat/zinc electroplated
• Conductor range: 8 - 1/0 AWG
• Thread length: 0.69 inches
• Country of origin: Mexico
• Application: For liquidtight flexible metal conduit
