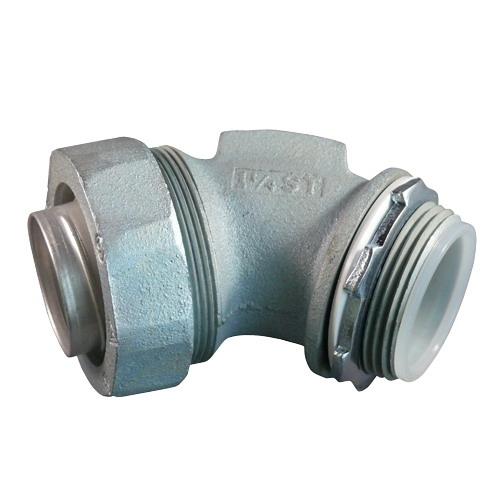

Appleton STB-45150 Conduit Connector 1-1/2 inches 45 deg

Product Description

The APPLETON STB-45150 conduit connector is liquid tight, oiltight, and raintight. This STB series connector has a 1-1/2 in trade size and a 45-degree angle. Constructed of malleable iron with a triple-coated finish, it measures 2.63 in W. Designed for use with liquid tight flexible metallic conduit.

• Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
• Polypropylene sealing ring with locknut standard

Product Highlights

The APPLETON STB-45150 is ideal for machine tool building, motor and transformer terminations, robotics assembly, and air conditioning equipment installation. It seals out oil, water, dust, dirt, and fumes and is suitable for wet locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STB-45150
• Country of Origin: MX

Technical Specifications

• Angle: 45 deg
• Finish: Triple Coated
• Series: STB
• Material: Malleable Iron
• Trade Size: 1-1/2 in
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• application: Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation
• Size: 1-1/2 IN
• TC Connection: Threaded X Compression
• Brand: Appleton
• Type: STB Series 45 DEG Liquidtight Connector With Insulated Throat
• Thread Length: 0.63 IN
• Part Number #: STB45150
• SKU #: 3761
• UNSPSC: 39121420
• Item Diameter: 1-1/2 Inch
• Applications: For Liquidtight Flexible Metal Conduit
