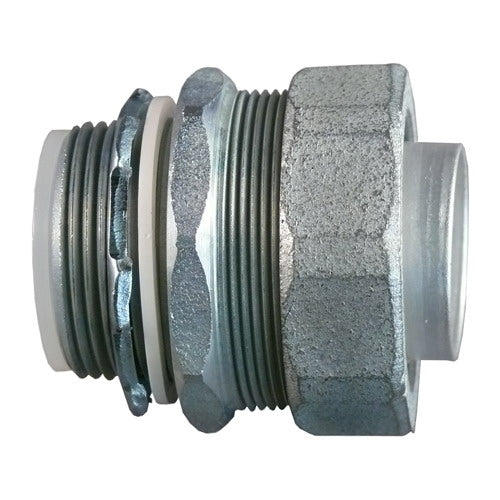

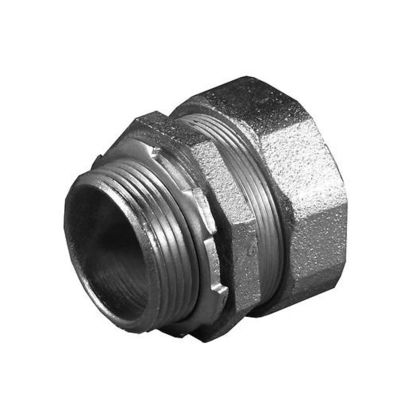

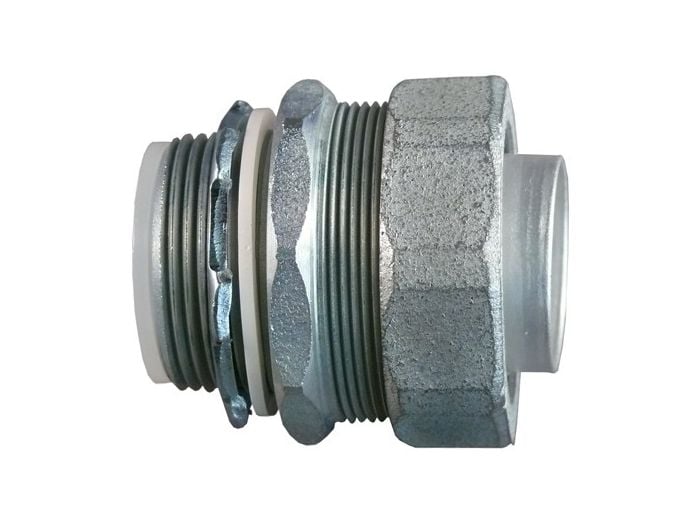

Appleton STB-250 liquidtight connector 2-1/2 inches straight

Product Description

The APPLETON STB-250 liquidtight connector provides a dependable connection for liquidtight flexible metal conduit. It seals out oil, water, dust, dirt, and fumes. The compact design results in a connector that offers a small turning radius. It is suitable for wet locations and has high corrosion resistance.

• Seals out oil, water, dust, dirt and fumes
• High corrosion resistance
• Compact design with small turning radius

Product Highlights

This liquidtight connector is ideal for providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: STB-250
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron
• Diameter: 2 1/2 in
• Manufacturer Part Number: STB250
• Manufacturer: Appleton
• Product Series: STB Insulated Throat
• Family Series: Appleton Fittings, STB Insulated Throat Series
• Description: Hardware
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Connection Type: Compression
• Angle: Straight
• Trade Size: 2-1/2 in
• Hub Size: 2-1/2 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: Yes
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
• Application: For Liquidtight Flexible Metal Conduit
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: STB250
• Connection: Threaded X Compression
• Country of Origin: MX
• EU RoHS Indicator: Y
• Height: 3.10 in
• Length: 6.50 in
• Series: STB
• Size: 2-1/2 IN in
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Standards: UL 514BUL E14814CSA C22.2 No. 18.3CSA 065178Class IDivision 2RoHS Compliant
• Suitable For Use With: Liquidtight Flexible Metallic Conduit
• Type: Liquidtight Oiltight Raintight
• UNSPSC: 39121420
• UPC 12: 781381681254
• Width: 4.70 in
• Brand: Appleton
• Finish: Epoxy Powder Coated
