Appleton st-90400 conduit connector 4 in 90 deg

Product Description

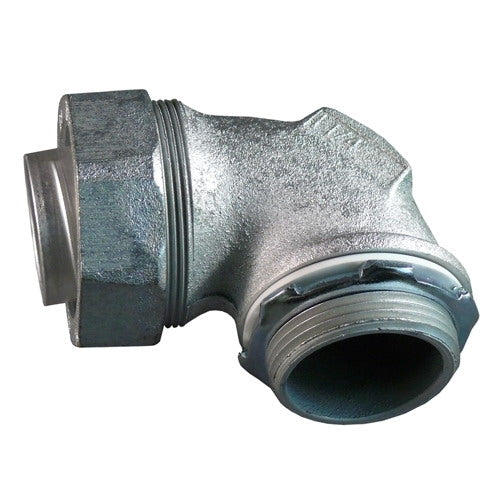

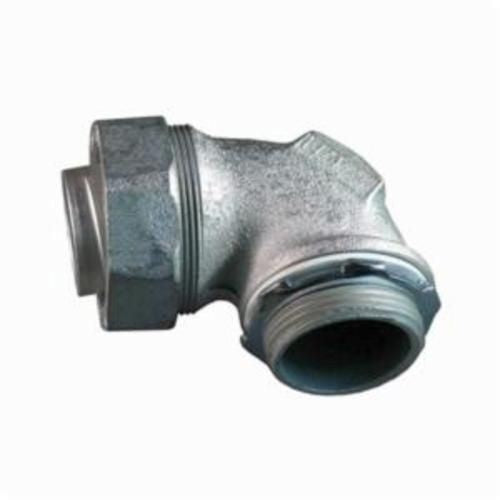

The APPLETON ST-90400 conduit connector is liquid tight, oiltight, and raintight. Part of the ST Series, it measures 4 inches with a 90-degree angle. Constructed from malleable iron with a triple-coated finish, it's designed for use with liquid-tight flexible metallic conduit. The connector ensures safe electrical service in environments exposed to weather, water, oil, and dirt.

• Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
• Polypropylene sealing ring with locknut standard

Product Highlights

The APPLETON ST-90400 is ideal for providing a secure and protected electrical connection in challenging environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ST-90400
• Country of Origin: MX

Technical Specifications

• Angle: 90 0
• Finish: Epoxy Powder Coated
• Series: ST Series
• Material: Malleable Iron
• Trade Size: 4 in
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Brand: APPLETON
• MPN: ST-90400
• Application: Wet Locations
• Standard & Approvals: UL 514B, UL E14814, CSA C22.2 No. 18.3, CSA 065178 and NEMA FB-1
• ARRA Compliant: Y
• Buy American Compliant: N
• Catalog Number: ST90400
• Connection: Threaded X Compression
• Type: Liquidtight Oiltight Raintight
• UNSPSC: 39121420
• UPC 12: 781381680851
• Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
• Standards: ARRA CompliantUL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178Class I, Div 2
• Diameter: 4 in
