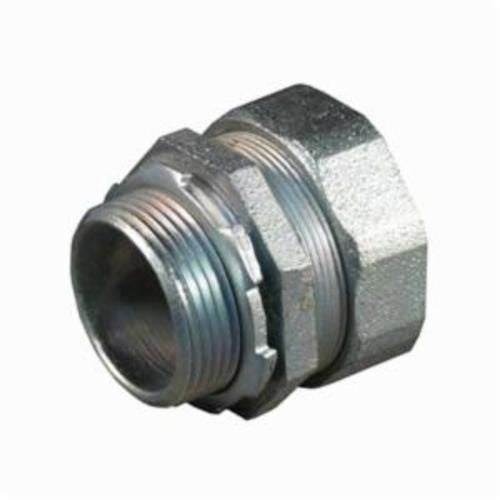

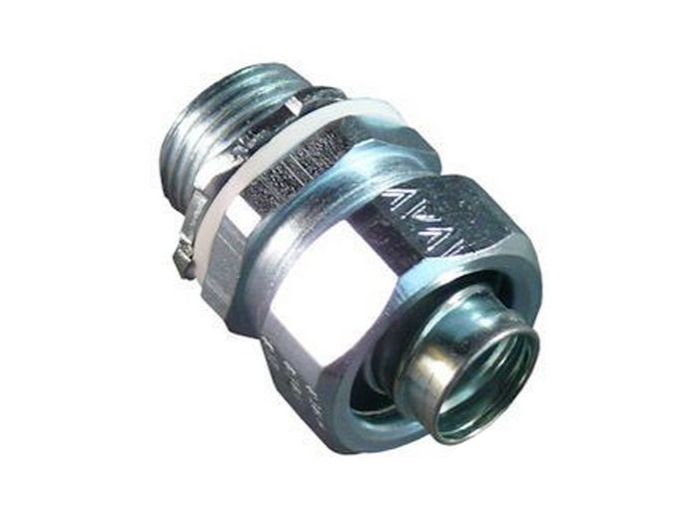

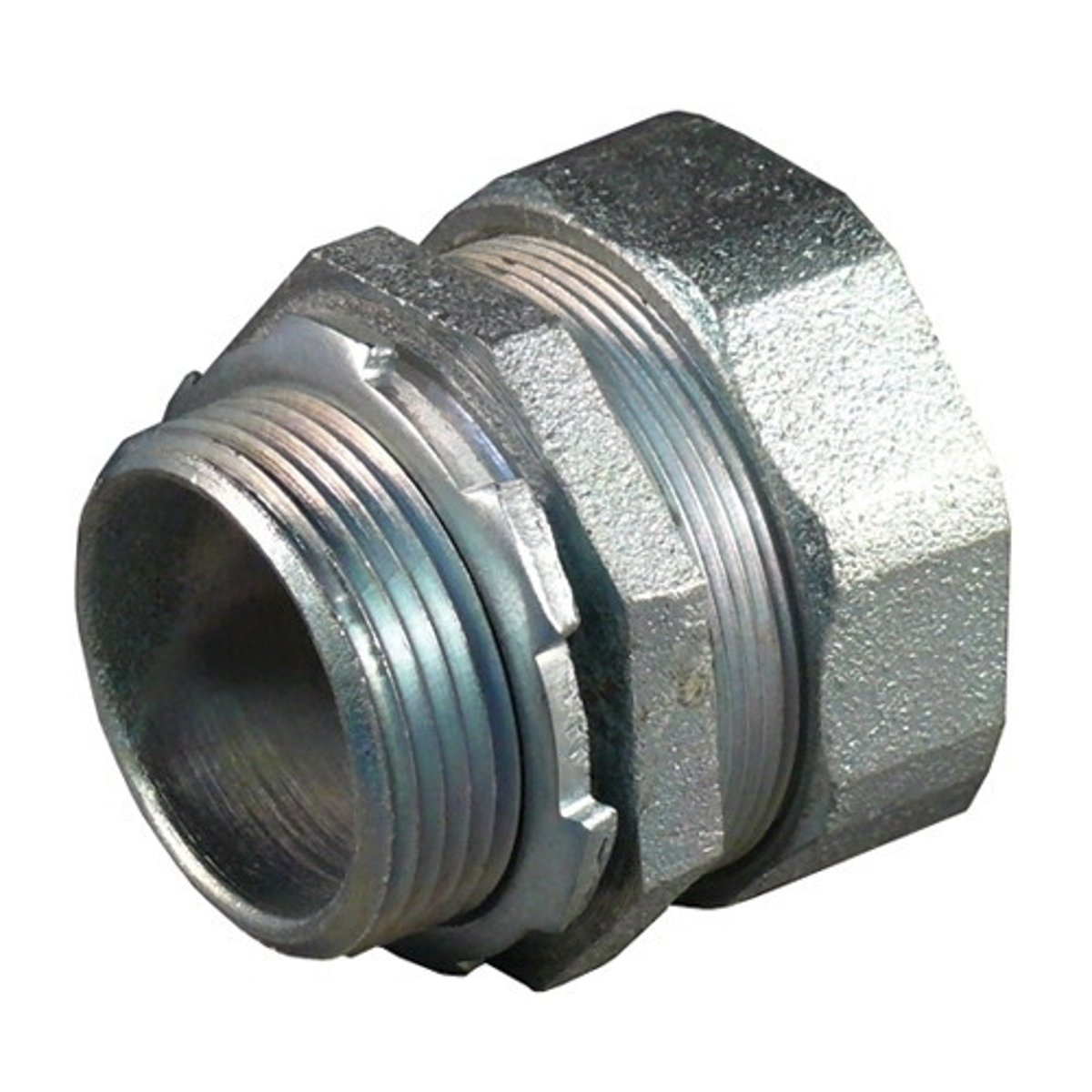

Appleton ST-400 Straight Liquidtight Connector 4 inch

Product Description

The APPLETON ST-400 straight liquidtight connector provides a dependable connection for liquidtight flexible metal conduit. It features a unique long ferrule with pronounced threads exceeding UL pull-out requirements. The ferrule maximizes surface contact for enhanced sealing and continuous grounding. Seals out oil, water, dust, dirt, and fumes. Suitable for wet locations.

• Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
• Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
• Polypropylene sealing ring with locknut standard

Product Highlights

Straight liquidtight connector with a compact design and small turning radius. Ideal for providing safe electrical service in areas exposed to weather and contaminants.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ST-400
• Country of Origin: MX

Technical Specifications

• Angle: Straight
• Finish: Triple Coated
• Series: ST Series
• Material: Malleable Iron
• Trade Size: 4 in
• Suitable For Use With: Liquid Tight Flexible Metallic Conduit
• Size: 4 IN
• Type: Straight, One-Piece
• Brand: Appleton
• Applications: For Liquidtight Flexible Metal Conduit
• TC Connection: External Threaded
• Thread Length: 31.8 mm
• Catalog Number: ST-400
• Manufacturer: Appleton Electric
• Connection: Threaded X Compression
• Special Features: Seals out oil, water, dust, dirt and fumes; High corrosion resistance; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Polypropylene sealing ring with locknut standard; Suitable for wet locations; Compact design with small turning radius; Steel compression nut
• Standard & Approvals: UL 514B, UL E14814, CSA C22.2 No. 18.3, CSA 065178 and NEMA FB-1
• Item Type: ST Series Straight Liquidtight Connector With Plain Throat
• Throat Type: Non-Insulated
• Approval: UL 514B, CSA C22.2
• Used On: Flexible Metallic Liquidtight Conduit
• Product Series: Liquidtight ST
• Family Series: Appleton Fittings, Liquidtight ST Series
• Conduit/Cable Type: FMC (Flexible Metallic Conduit)
• Hub Size: 4 "
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Liquid Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
