Product Description

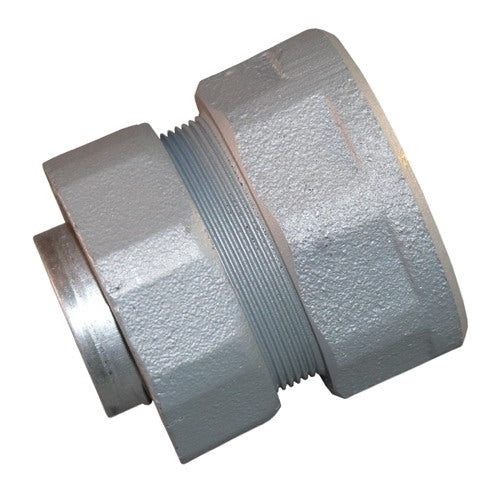

The APPLETON ST-125F is a 1-1/4" liquidtight female flex connector designed for providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants. It is suitable for use with liquidtight flexible metal conduit when making connections to threaded rigid conduit and IMC.
- Provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Liquidtight, raintight and oiltight
- Threaded x compression connection
Product Highlights
The APPLETON ST-125F ensures a secure and reliable connection in harsh environments, offering liquidtight, raintight, and oiltight protection.
Product Information
Standard Information
-
Brand: APPLETON
-
Manufacturer Part Number: ST-125F
-
Country of Origin: MX
Technical Specifications
-
Application: For Liquidtight Flexible Metal Conduit When Making Connection To Threaded Rigid Conduit And IMC
-
Catalog Number: ST125F
-
Connection: Threaded X Compression
-
Country of Origin: MX
-
Series: ST Series
-
Size: 1-1/4 IN in
-
Standard: Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1
-
Standards: UL 514BUL File No. E14814CSA C22.2 No. 18.3CSA 065178RoHS CompliantClass I, Div 2
-
Suitable For Use With: Liquidtight Flexible Metallic Conduit
-
Type: Liquidtight Oiltight Raintight
-
UNSPSC: 39121420
-
UPC 11: 78138146331
-
UPC 12: 781381463317
-
Brand: APPLETON
-
Manufacturer: Appleton
-
Angle: Straight
-
Finish: Epoxy Powder Coated
-
Material: Malleable Iron
-
Trade Size: 1-1/4 in
-
ARRA Compliant: N
-
Buy American Compliant: N
-
Diameter: 1 1/4 in
