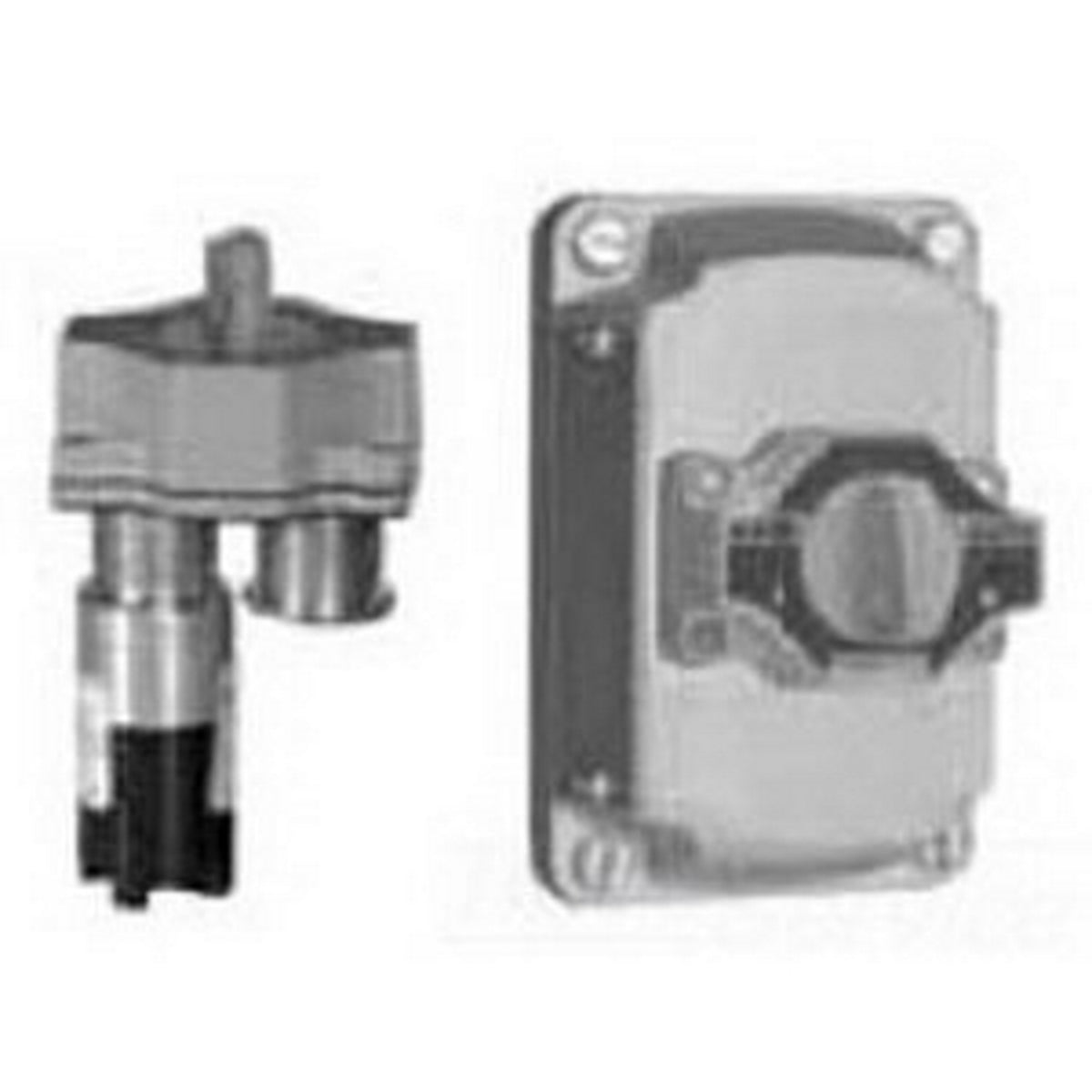

Appleton SSBA12Q Intraground Non-Illuminated Selector Switch

Product Description

The Appleton SSBA12Q Intraground Non-Illuminated Selector Switch is designed for safe operation in hazardous environments. It is suitable for use in chemical plants, refineries, and industrial applications. The switch is factory sealed to prevent ignition in flammable atmospheres during motor control operations.

• Explosionproof and dust-ignitionproof design
• Factory sealed to eliminate the need for additional sealing fittings
• Compatible with various push buttons and available pilot lights

Product Highlights

Reliable control for motors in hazardous locations.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Type: Non Illuminated Selector Switch

Technical Specifications

• Catalog Number: SSBA12Q
• Contact Rating: 10 AMP at 600 VAC
• Enclosure: NEMA 3, 7C, 7D, 9E, 9F, 9G
• Contact Configuration: 1 NO/1 NC
• Number of Steps: 2
• Country of Origin: Mexico
• Application: For conjunction with contactors or magnetic starters for remote control of motors
• Mounting: Surface mount with 1/2 inch NPSM
