Appleton SNTC-50 Sntc50 Apn 1/2 in

Product Description

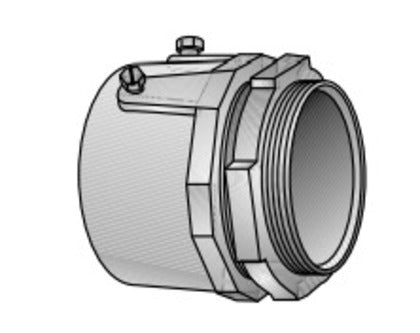

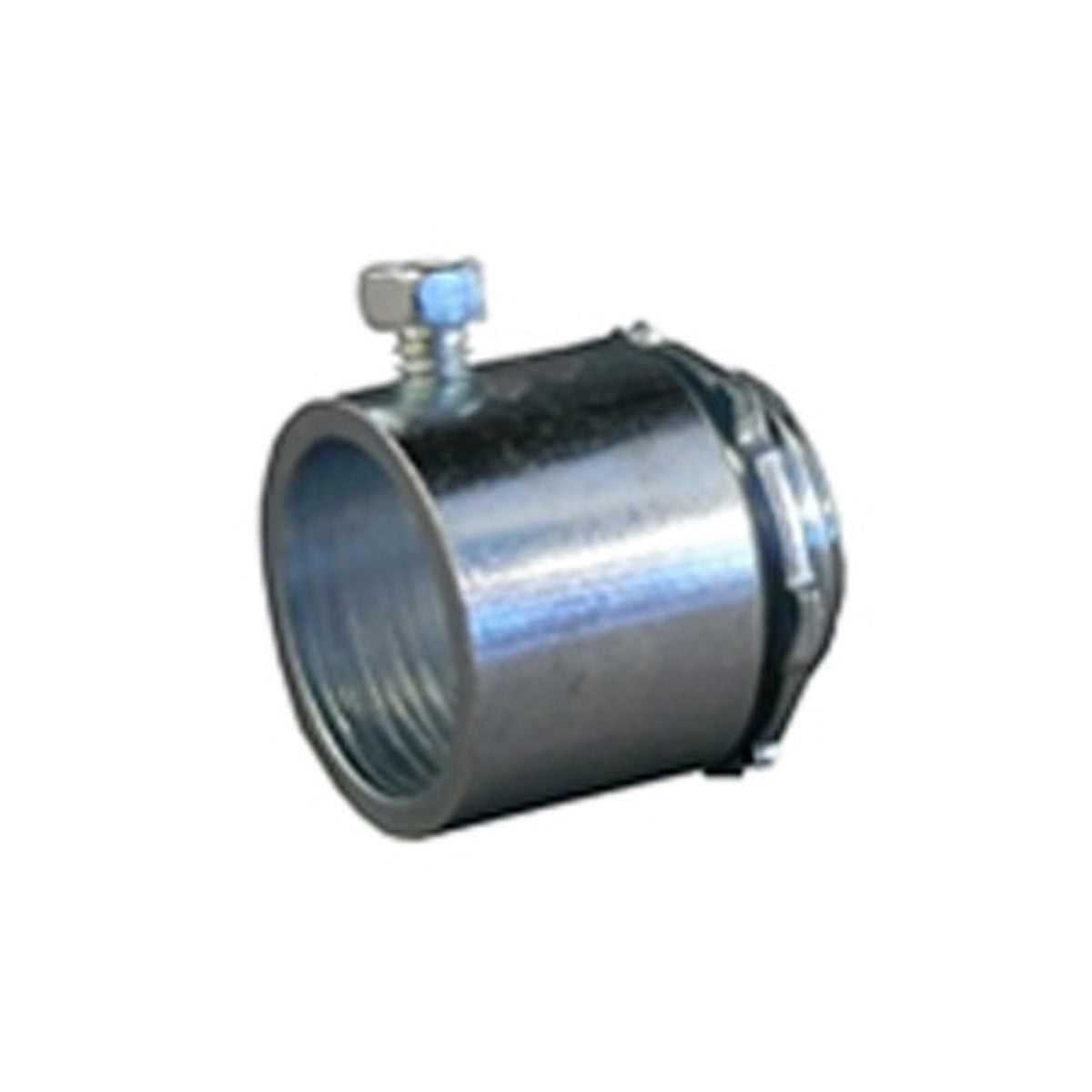

The APPLETON SNTC-50 is a threadless compression coupling used to join lengths of rigid metal conduit and to secure and terminate rigid metal conduit to enclosures. It has a trade size of 1/2 in and is made of malleable iron/steel. The connector is concrete tight when taped.

• Concrete tight when taped
• UL listed
• CSA certified

Product Highlights

The APPLETON SNTC-50 is a reliable solution for connecting rigid metal conduits in various applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: SNTC-50
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron/Steel
• Trade Size: 1/2 in
• Suitable For Use With: Threadless Rigid Conduit
• Catalog Number: SNTC-50
• Manufacturer: Appleton Electric
• Brand: Appleton™
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use To Secure And Terminate Steel EMT To Knockouts And Concrete Tight Box
• Connection: Male Threaded X Set-Screw
• Special Features: Concretetight when taped
• Standard: UL 514B, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
• Item Type: Set-Screw Connector
• Type: Set Screw, Threadless
• Throat Type: Non-Insulated
• Constructional Feature: Concrete-Tight
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Insulation: Non-Insulated
• Standards: RoHS CompliantUL 514BCSA 065178C22.2 No. 18.3NEMA FB-1
• UNSPSC: 39121311
