Product Description

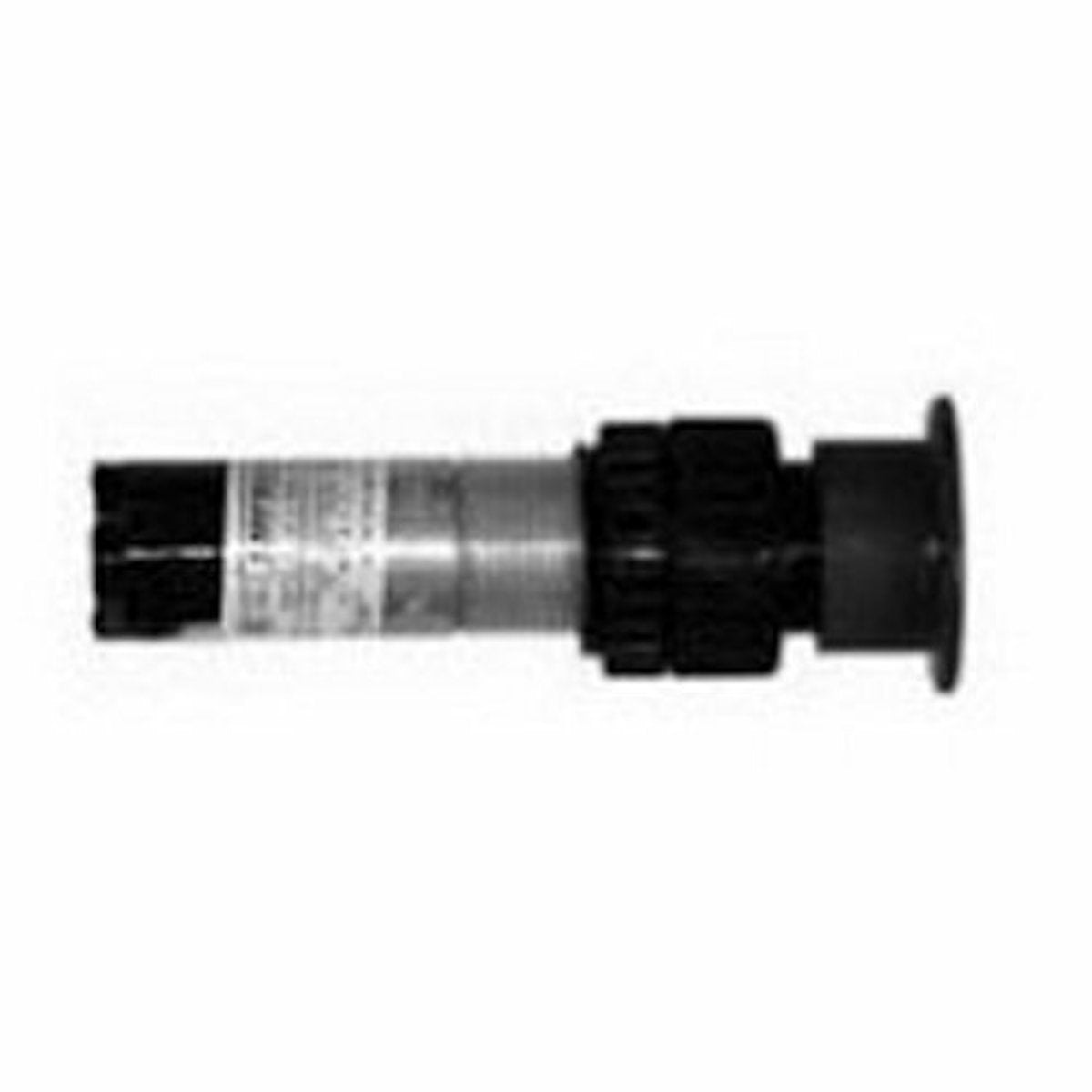

The Appleton SMPBU1Q is a universal heavy-duty factory sealed push button. It is designed for use in environments with potential hazards, including those with dust and flammable gases. The push button features a maintained operation type with a contact configuration of one normally open and one normally closed. It operates at a contact rating of ten amps at six hundred volts AC.
- Explosionproof design, ideal for chemical and petrochemical applications.
- Factory sealed to prevent the need for sealing fittings at each conduit entrance.
- Mushroom head actuator for easy operation.
Product Highlights
This push button is suitable for classified areas where volatile substances may be present. The EFD/EFDB control stations are reliable for remote motor control.
Product Information
Standard Information
-
Manufacturer: Appleton Electric
-
Catalog Number: SMPBU1Q
Technical Specifications
-
Type: Universal Heavy-Duty Factory Sealed Push Button
-
Contact Configuration: 1 NO/1 NC
-
Contact Rating: 10 AMP at 600 VAC
-
Actuator Type: Mushroom Head
-
Mounting: Surface Mount with 1/2 inch NPSM
-
Origin: Mexico
-
Standard: Class I, Division 1, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; Class III
