Appleton SD-11 Static Discharge Cable Reel 50 feet SD

Product Description

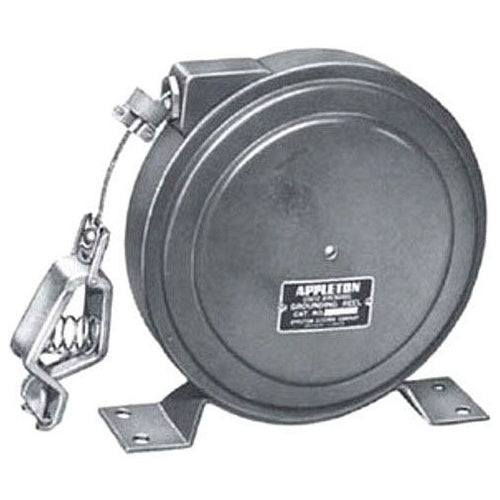

The APPLETON SD-11 static discharge grounding reel provides safe grounding for vehicles and equipment in hazardous atmospheres. The SD series dissipates static electrical buildup, reducing the chance of sparks and explosions. These steel Reelites can be mounted to the ceiling or wall to ensure electrical continuity through a frame.

• Active cable length of 50 feet
• Steel reel frame
• Suitable for fuel-transfer trucks, barges, and grain elevators

Product Highlights

The APPLETON Static Discharge Cable Reel provides a retractable grounding cable and clamp for easily and safely dissipating static electrical buildup.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: SD-11
• Country of Origin: USA

Technical Specifications

• Amps: 100
• Length: 50 ft
• Material: Steel
• Application: For Fuel-Transfer Trucks, Barges, Dock Side Loading Facilities And Grain Elevators
• Brand Name: Reelites[R]
• Cable_Active_Length: 50
• Diameter: 8-1/2
• Finish: Epoxy Polyester Powder Coated
• Reel_Frame: Steel
• Special Features: Gravity type ratchet Lightweight, compact, all-steel construction SD static discharge reelites are used for grounding portable machines or equipment operating in hazardous atmospheres These Reelites safely dissipate static electrical buildup and reduce the chance of a spark and resulting explosion
• Sub_Brand: Appleton
• Type: Static Discharge
• MPN: SD11
• Mounting Style: Cable
• Model: SD
• Cable Type: REEL WITH CABLE
• DC Resistance: 1 OHM
• Applicable Standard: NEC/CEC
• Additional Information: DC Resistance 1 Ohm; Cable Size 3/32 Inch
• Catalog Number: SD-11
• Cable Length: 50 Ft
• Made In Usa: Yes
• Manufacturer: Appleton Electric
• Manufacturer Brand: Appleton Electric
• Sub Category: Explosionproof Cable Retracting Reel
