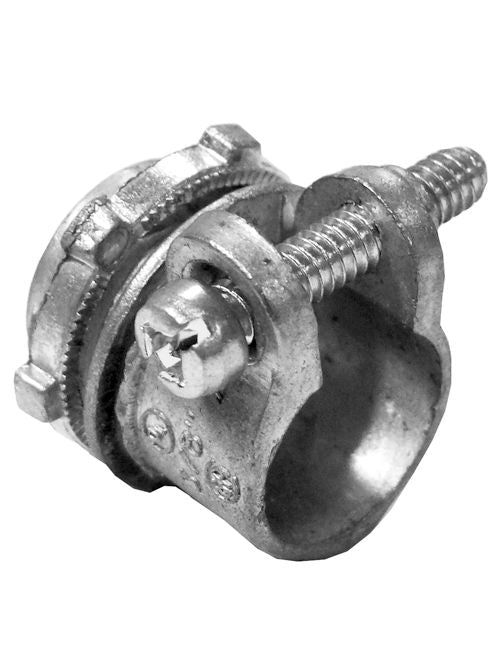

Appleton SC400 4 Flex/AC Squeeze Connector

Product Description

The Appleton SC400 is a 4 inch flexible metallic conduit connector, designed for dry location applications. This product features a male NPS thread connection for secure attachment. It meets industry standards such as UL 514B and CSA C22.2 No. 18.3.

• Application: Designed for dry locations.
• Material: Constructed from zinc for durability.
• Type: Straight Squeeze Connector for flexible metal conduit.

Product Highlights

The Appleton SC400 connector is ideal for terminating flexible metal conduit to a knockout in an enclosure.

Product Information

Standard Information

• Brand: Appleton
• MPN: SC400

Technical Specifications

• Dimensions: 4.55 inches in length x 5.46 inches in height
• Type: Non-Insulated Throat Straight Squeeze Connector
• Trade Size: 4 inches
• Connection: Male NPS thread
• Material: Die Cast Zinc
• Application: Terminate flexible metal conduit to a knockout in a dry location box or enclosure
• Standards: UL 514B, CSA C22.2 No. 18.3, NEMA FB-1
