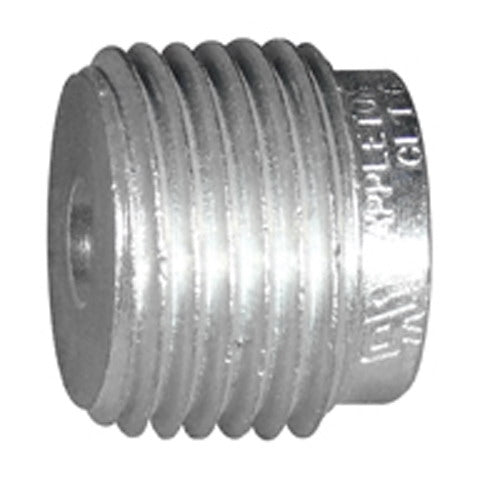

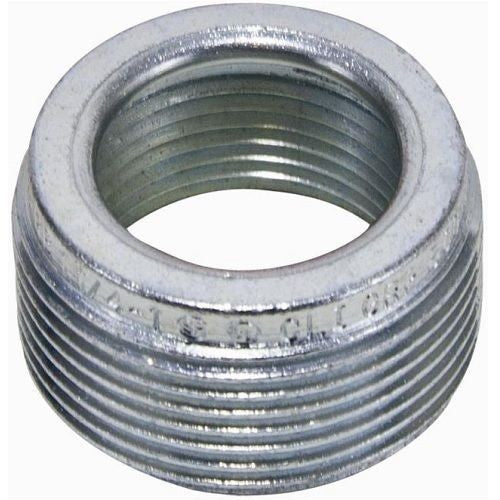

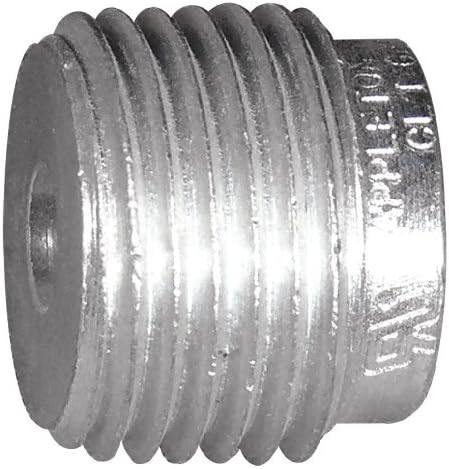

The APPLETON RB50-38 reducing bushing is designed for reducing conduit entries to a smaller size in threaded rigid and IMC conduit systems. It features a smooth, rounded integral bushing to protect conductor insulation and full machine tapered threads (NPT). It is made of steel with a zinc electroplated finish.
Smooth rounded integral bushing protects conductor insulation
Full machine tapered threads (NPT)
For reducing conduit entries to a smaller size in threaded rigid and IMC conduit systems
Product Highlights
The Appleton RB Series reducers are explosionproof and dust-ignitionproof. They are used in threaded rigid and IMC conduit systems.
Product Information
Standard Information
Brand: APPLETON
Manufacturer Part Number: RB50-38
Country of Origin: MX
Technical Specifications
Series
RB Series
Material
Steel
Trade Size
1/2 x 3/8 in
Finish
Zinc Electroplated
Application
For reducing conduit entries to a smaller size in threaded rigid and IMC conduit systems
Type
Threaded
Standard & Approvals
Class I: Groups A, B, C, D, Class II: Groups E, F, G, Class III, UL 886 (1203), UL E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181, RoHS Complaint
Connector Type
Bushing
Thread Type
NPT
Manufacturer
Appleton
Manufacturer Part Number
RB5038
Included Components
RB5038
Connection
NPT
Country of Origin
MX
Standard
Class I: Groups A, B, C, D, Class II: Groups E, F, G, Class III, UL 886 (1203), UL E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181
Standards
RoHS CompliantUL Listed for Class I Groups A, B, C, D, Class II Groups E, F, G, Class IIICSA C22.2 No.25/30/065181UL 886 (1203)UL File No. E10444
