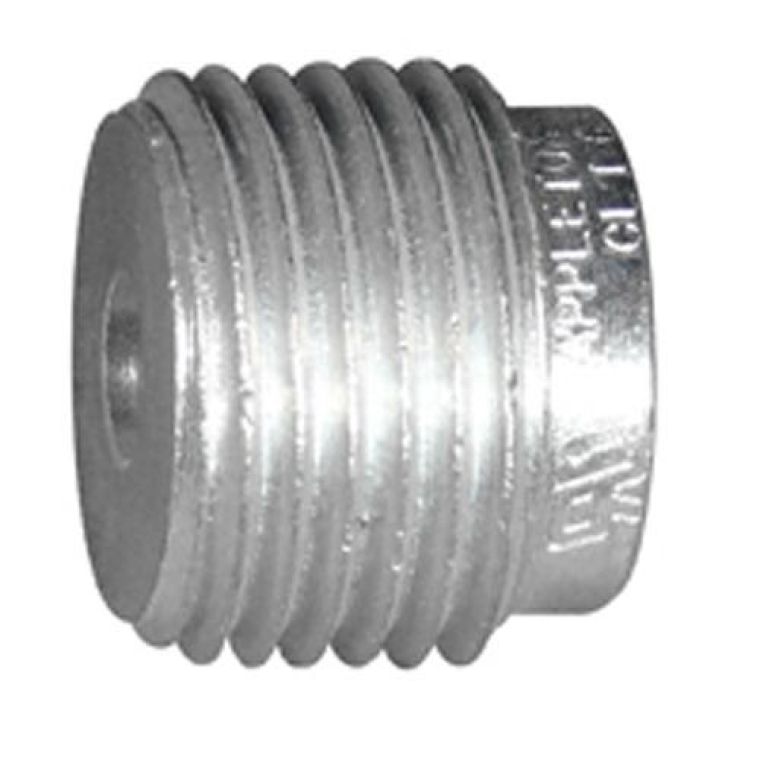

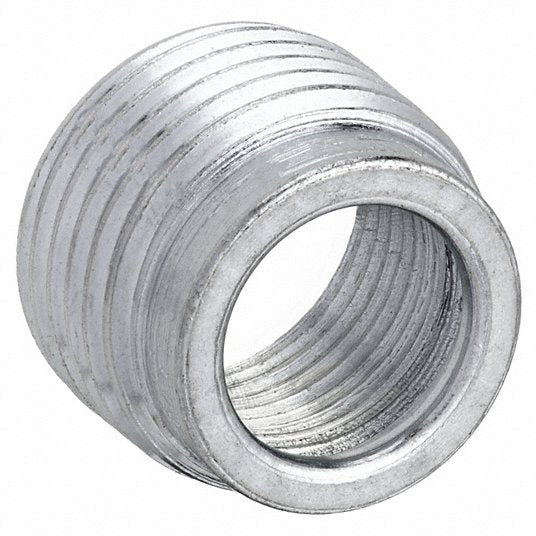

Appleton RB50-13 Reducing Bushing (1/2 x 1/8 in)

Product Description

The APPLETON RB50-13 reducing bushing adapts narrow, threaded heavy-wall RMC and medium-wall IMC metal conduit to fit in larger knockouts. It is suitable for use in hazardous locations where flammable gases, vapors, powdered metals, or dust is present. The bushing protects conductor insulation.

• For Reducing Conduit Entries To A Smaller Size In Threaded Rigid And IMC Conduit Systems
• Smooth rounded integral bushing protects conductor insulation
• Full machine tapered threads (NPT)

Product Highlights

The APPLETON Reducing Bushing transitions between two different trade sizes at a conduit hub or fitting opening, allowing a smaller conduit to connect to a larger threaded entry.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: RB50-13
• Country of Origin: MX

Technical Specifications

• Material: Steel
• Application: For Reducing Conduit Entries To A Smaller Size In Threaded Rigid And IMC Conduit Systems
• Catalog Number: RB5013
• Connection: NPT
• Country of Origin: MX
• Connection Type: Threaded
• EU RoHS Indicator: N
• Series: RB Series
• Size: 1/2 X 1/8 IN in
• Standard: Class I: Groups A, B, C, D, Class II: Groups E, F, G, Class III, UL 886 (1203), UL E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181
• Type: Reducing Bushing
• UNSPSC: 39121312
• UPC 12: 781381736336
• Brand: Appleton
• Manufacturer: Appleton
• Finish: Zinc Electroplated
• Trade Size: 1/2 x 1/8 in
• Ends - Hazardous Fittings: 1/8 in FNPT x 1/2 in MNPT
• For Use With: IMC; Threaded Conduit
• Hazardous Location Rating: Class I, Groups A, B, C, D; Class II Groups E, F, G; Class III
• Reduction Size: 1/2 in to 1/8 in
• Thread Gender: Female to Male
• Thread Type: NPT
• Fitting Subtype: Reducing
• Fitting Type: Bushing
• Hazard Rating: Dust-Ignitionproof / Explosionproof
• Hazard Rating Specs: Class I, Division 1, Groups A, B, C, D, Class III, Class II, Division 1, Groups E, F, G, UL 1203, UL 886
• Specifications Met: Class III, UL 886, Class II Groups E, F, G, CSA 065181 C22.2 No. 25/30, UL 1203 File No. E10444, UL Listed for Class I Groups A, B, C, D
