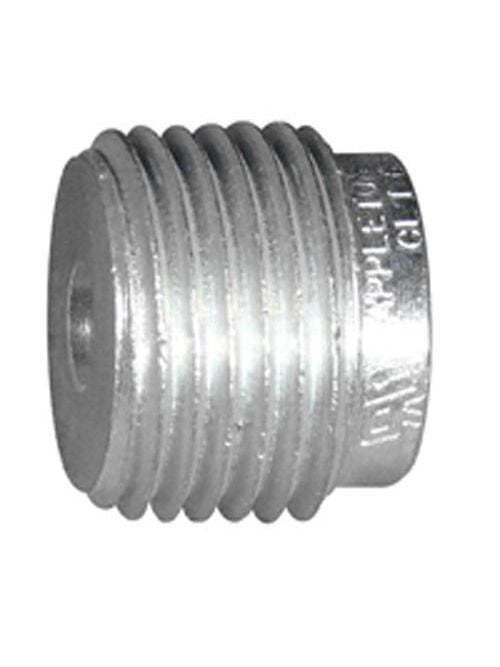

Appleton RB125-50 Reducing Bushing Steel 1-1/4 x 1/2

Product Description

The Appleton RB125-50 is a reducing bushing made from steel and has a zinc electroplate finish. It is designed for use with Rigid and IMC conduit systems. This bushing connects threads NPT and has a size of one and one-quarter inches at the large end, reducing to one-half inch on the smaller end. It meets various standards, including Class I and Class II, making it suitable for hazardous locations.

• Size: 1-1/4 x 1/2 inches
• Material: Steel with Zinc Electroplate finish
• Connection Type: NPT

Product Highlights

This reducing bushing is ideal for transitioning conduit entries from a larger to a smaller size. It provides protection for conductor insulation, ensuring durability in various applications.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: RB125-50
• Material: Steel
• Finish: Zinc Electroplate
• Connection: NPT
• Application: Reducing conduit entries in rigid and IMC conduit systems
• Standards: Class I Groups A, B, C, D; Class II Groups E, F, G; Class III; UL 886
• Size: 1-1/4 x 1/2 inches
• Weight: 0.330 pounds
