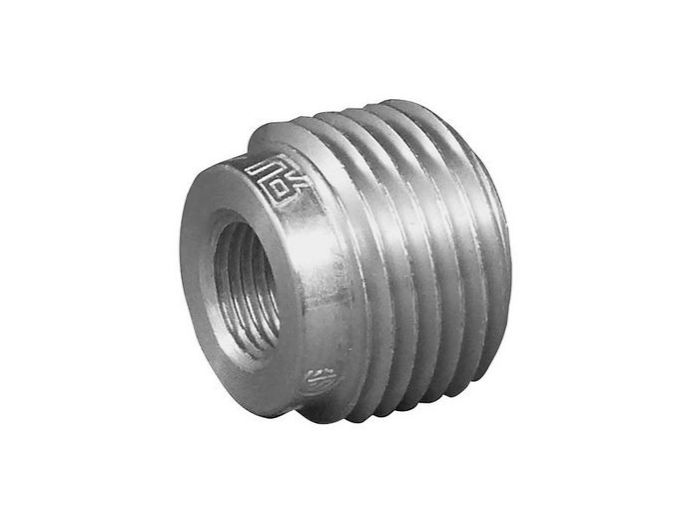

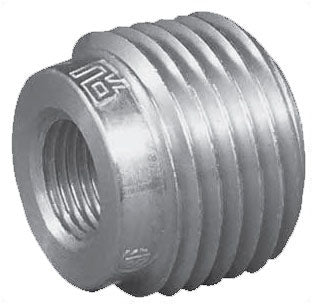

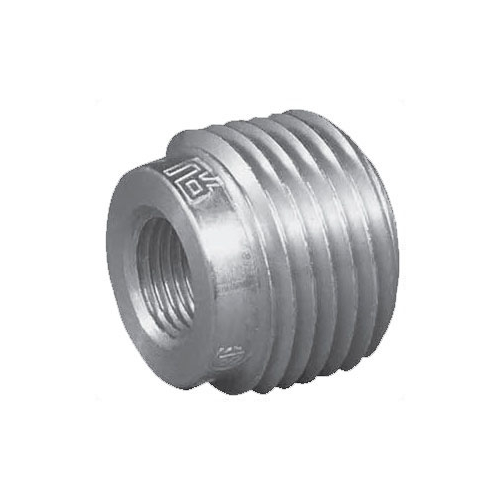

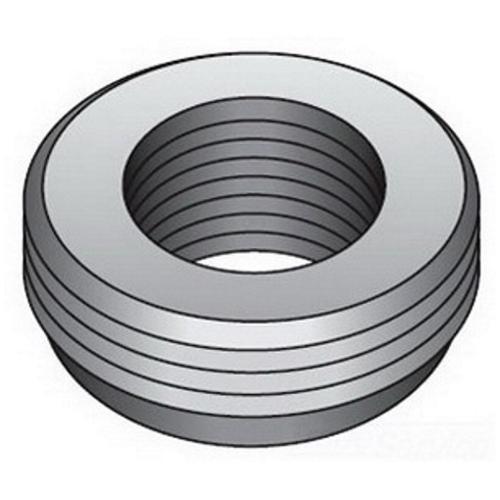

Appleton RB-334 Reducing Bushing 2 x 3/4 in

Product Description

The APPLETON RB-334 is an RB Series reducing bushing designed for conduit and fittings applications. It is used to reduce conduit entries to a smaller size and are used in threaded rigid and IMC conduit systems. This reducing bushing provides a smooth, rounded integral bushing in the hub to protect conductor insulation.

• Smooth internal bushing protects conductors
• Suitable for use in hazardous and ordinary locations
• Protects conductor insulation with smooth integral bushing

Product Highlights

The Appleton RB Series reducing bushing features a zinc electroplated finish for corrosion resistance and provides tight, rigid joints with excellent ground continuity.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: RB-334
• Country of Origin: MX

Technical Specifications

• Brand: Appleton
• Part Number: RB334
• Series: RB Series
• Trade Size: 2 x 3/4 in
• Material: Malleable Iron
• Manufacturer: Emerson Electric
• UNSPSC: 39121312
• Connection Type: Male/Female
• External Thread: 2 NPT
• Internal Thread: 3/4 NPT
• Composition: Metallic
• Hazardous Location: Yes
• Approvals: CSA, UL
• Comments: Explosionproof, Dust-Ignitionproof
• Thread Type: Tapered NPT
• Application: Rigid Conduit and IMC
• Material Finish: Zinc Electroplated
• Country of Origin: United States
