Product Description

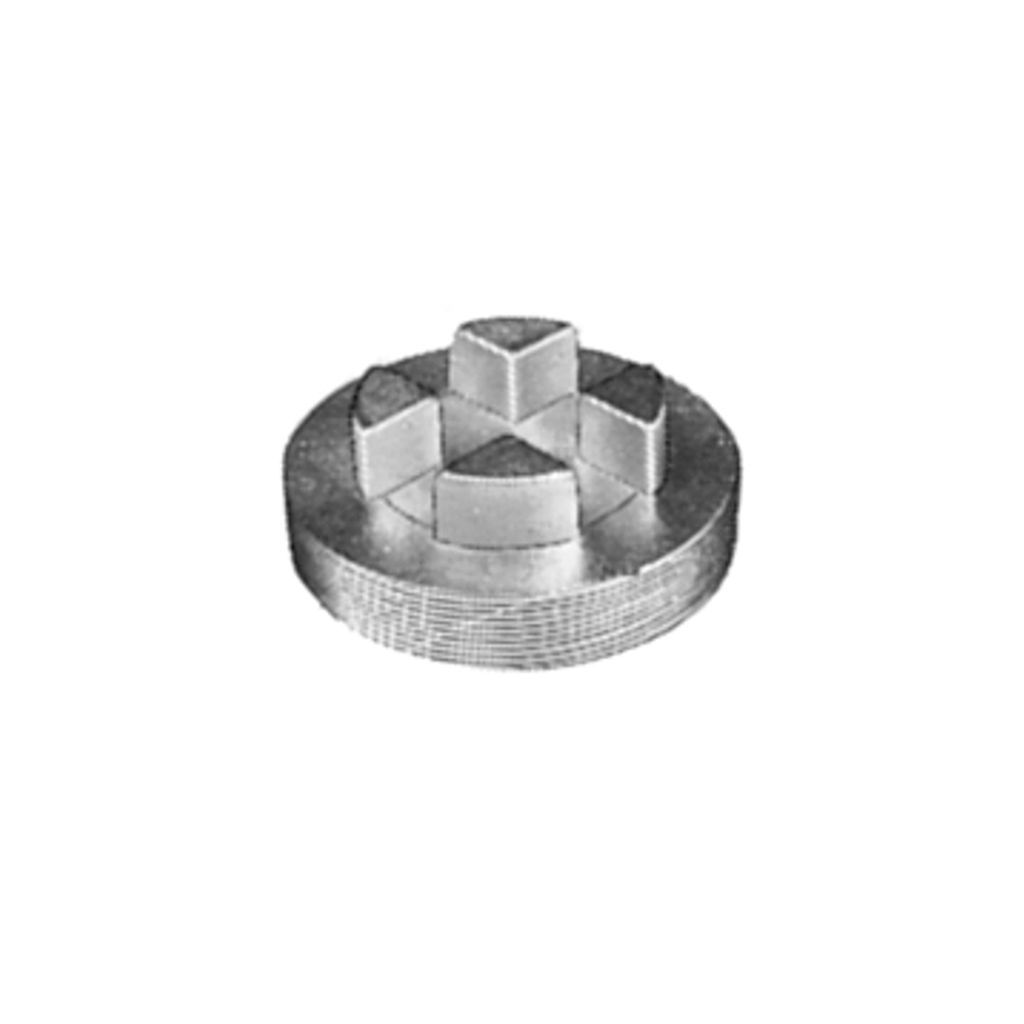

The Appleton PLG-400 is a four-inch recessed head close-up plug designed for use with threaded rigid metal conduit and IMC. This plug is explosionproof and dust-ignitionproof, making it suitable for hazardous locations. It is made of malleable iron with an electro zinc plated finish. The tapered MNPT connection allows for easy installation.
- Explosionproof and dust-ignitionproof
- Smooth, rounded integral bushing protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints
Product Highlights
The PLG-400 offers reliable sealing for conduit openings, making it ideal for use in electrical installations requiring safety in potentially explosive environments.
Product Information
Standard Information
-
Brand: Appleton
-
Manufacturer: Appleton Electric
Technical Specifications
-
Catalog Number: PLG-400
-
Trade Size: 4 Inch
-
Material: Malleable Iron
-
Finish: Electro Zinc Plated
-
Connection Type: Tapered MNPT
-
Approval: UL 886, CSA C22.2
-
Weight: 3.740 Pounds
-
Dimensions: 5.2000 inches (Length), 5.2000 inches (Width), 1.3750 inches (Height)
