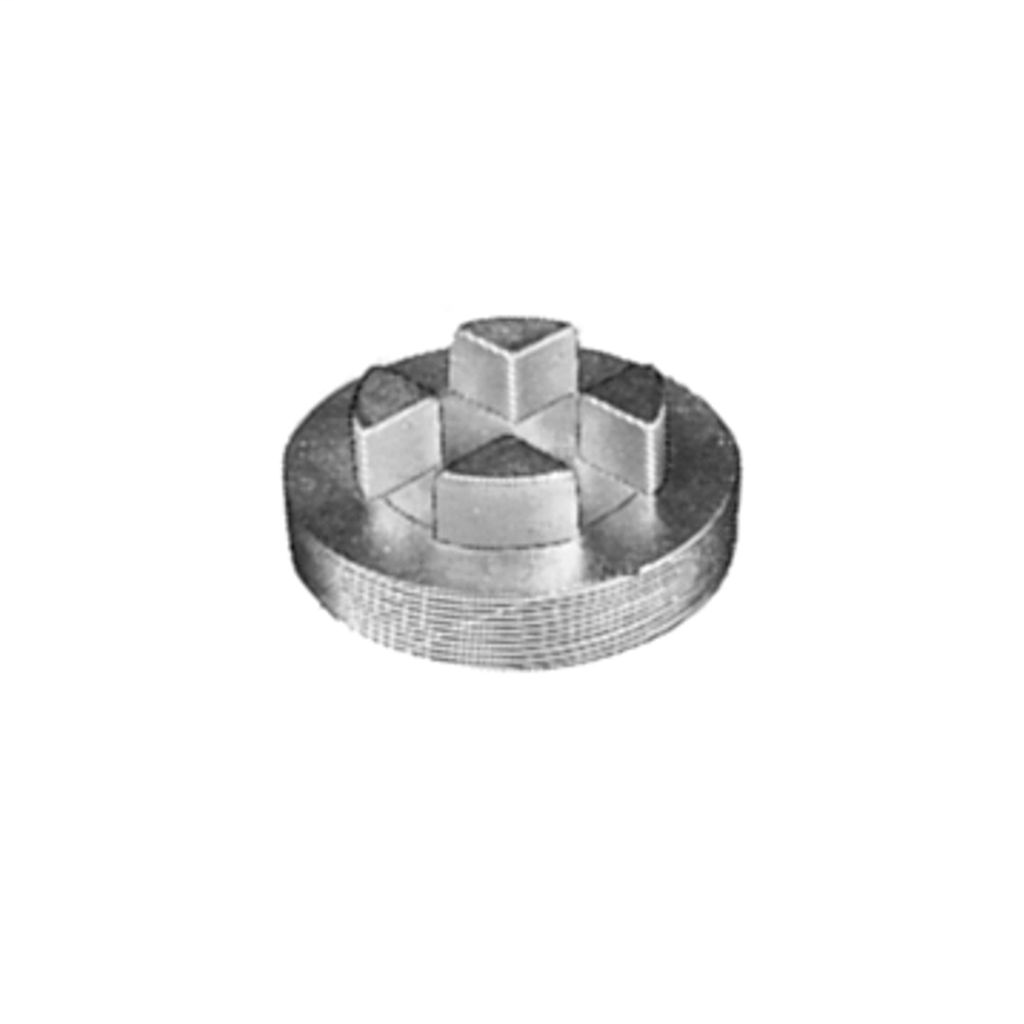

Appleton PLG-100S Square Head Close-Up Plug 1 IN

Product Description

The Appleton PLG-100S is a square head close-up plug designed for threaded metal conduit. This plug is explosionproof and dust-ignitionproof, making it suitable for use in harsh environments. It effectively seals conduit openings to ensure safety and reliability in electrical installations.

• Explosionproof and dust-ignitionproof design
• Compatible with threaded metal conduit and intermediate metal conduit (IMC)
• Electro zinc plated steel construction for enhanced durability

Product Highlights

The Appleton PLG-100S plug provides a secure and effective means to close conduit openings while maintaining electrical continuity.

Product Information

Standard Information

• Brand: Appleton
• MPN: PLG-100S

Technical Specifications

• Material: Steel
• Connection Type: Tapered MNPT
• Finish: Electro Zinc Plated
• Size: 1 IN
• Weight: 0.21 Pounds
• Length: 6.5 Inches
• Width: 4.7 Inches
• Height: 0.124 Inches
• Standard Compliance: UL 886 (1203), UL File No. E10444, CSA C22.2 No. 25 and 30
