Appleton PC120D2 CLASS I DIV.2 PC-120VAC

Product Description

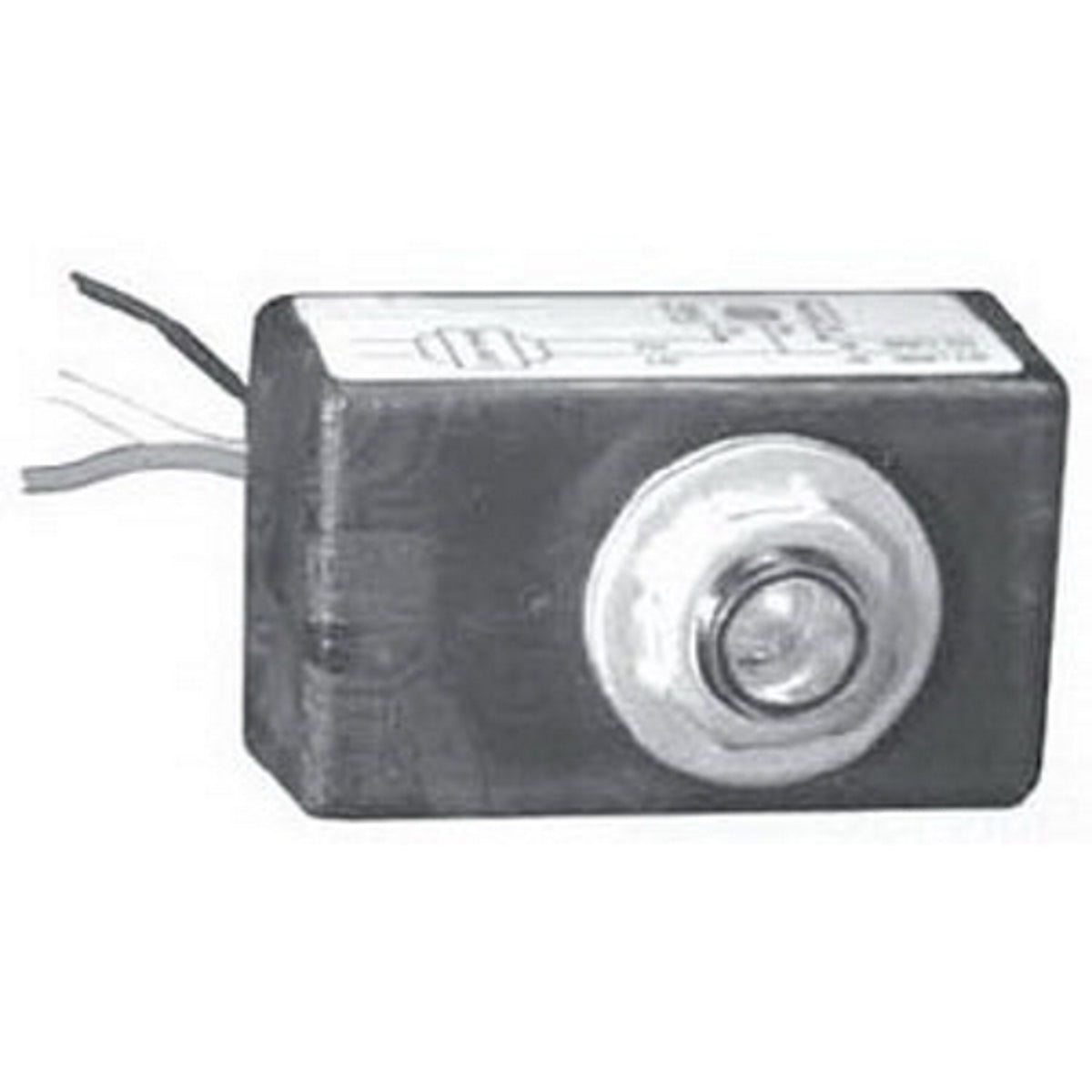

The Appleton PC120D2 is a PCD2 Series photocontrol designed to operate with a supply voltage of one hundred twenty volts. This unit is equipped with three eighteen AWG stranded leads, measuring six inches in length, to facilitate easy installation. It mounts into a half-inch knockout and conforms to NEMA 4X standards, making it suitable for use in harsh environments.

• Encapsulated photocontrol for dusk-to-dawn operation.
• UL approved for outdoor and hazardous locations.
• Factory sealed design eliminates the need for an external explosionproof enclosure.

Product Highlights

This photocontrol is designed for use in Class I, Division 2 environments, making it ideal for locations prone to explosive gases. The device features solid-state technology, ensuring reliable performance and a minimum time delay of fifteen seconds to prevent nuisance tripping.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: PC120D2

Technical Specifications

• Supply Voltage: 120 V
• Connection: (3) 18 AWG Stranded 6 IN Leads
• Mounting: 1/2 IN Knockout
• Enclosure: NEMA 4X
• Frequency Rating: 50/60 HZ
• Amperage Rating: 8.3 AMP
• Length: 1.94 IN
• Application: Remote installation in Mercmaster III fixtures
