Product Description

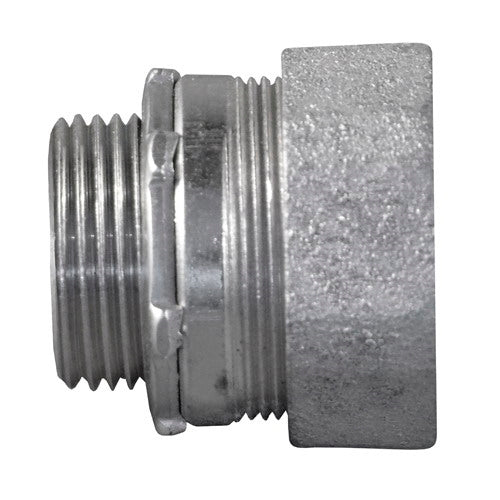

The Appleton NTC-150 is a compression connector designed for use with 1-1/2 inch steel EMT. It features male threaded connections and is constructed from malleable iron. This connector measures 2.01 inches in length with a thread length of 0.63 inches and a diameter of 2.69 inches. It meets UL 514B and CSA standards, making it suitable for terminating steel EMT to knockouts and concrete tight boxes.
- Compression connector for 1-1/2 inch conduit
- UL and CSA approved
- Made from malleable iron
Product Highlights
This compression connector is ideal for both commercial and industrial applications, ensuring secure connections in various settings.
Product Information
Standard Information
-
Catalog Number: NTC-150
-
Manufacturer: Appleton Electric
Technical Specifications
-
Trade Size: 1-1/2 Inch
-
Length: 2.01 Inches
-
Diameter: 2.69 Inches
-
Material: Malleable Iron
-
Connection Type: Male Threaded X Compression
-
Approval Standards: UL 514B, CSA C22.2 No. 18.3
-
Application: For Securing EMT to Knockouts
-
Weight: 0.600 Pounds
-
Country of Origin: Mexico
