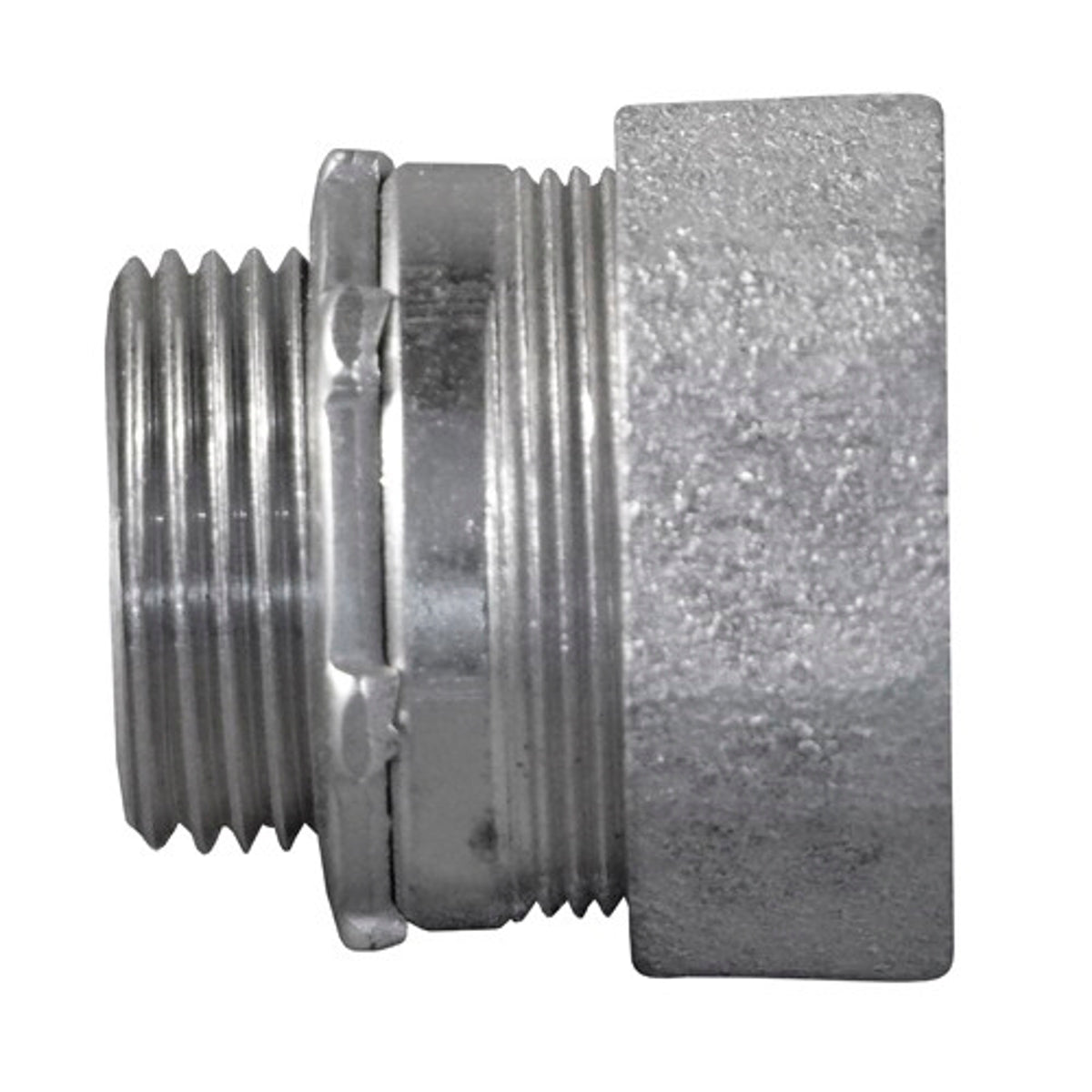

Appleton NTC-125 Concrete Tight Compression Connector 1-1/4 No Thread

Product Description

The Appleton NTC-125 is a concrete tight compression connector designed for use with 1-1/4 inch steel EMT conduit. This connector features a male threaded x compression connection. It is built from malleable iron and steel, providing strength and durability in various settings. Measurement specifications include a length of one point nine four inches, a thread length of zero point six three inches, and a diameter of two point three one inches. This product is compliant with UL standards and is suitable for securing and terminating steel EMT to knockouts and concrete tight boxes.

• Concrete tight construction
• Compatible with IMC/Rigid metal conduit
• Meets UL 514B and CSA standards

Product Highlights

This conduit connector is ideal for commercial and industrial applications, particularly in hazardous locations.

Product Information

Standard Information

• Brand: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: NTC-125
• Material: Malleable Iron and Steel
• Connection Type: Male Threaded x Compression
• Trade Size: 1-1/4 Inch
• Length: 1.94 inches
• Diameter: 2.31 inches
• Thread Length: 0.63 inches
• Application: For use to secure and terminate steel EMT to knockouts and concrete tight box
