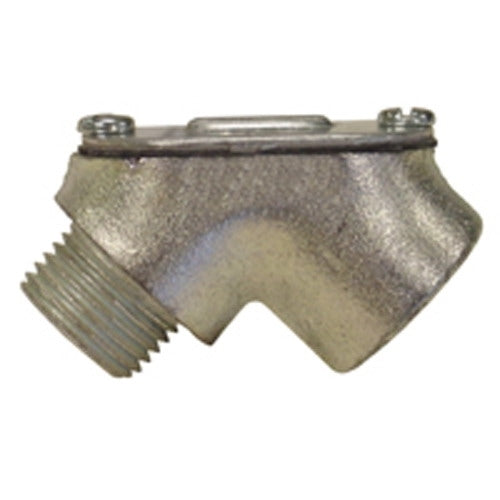

Appleton MFL-100 Pulling Elbow 1 in 90 deg

Product Description

The APPLETON MFL-100 is a pulling elbow with a male to female gasketed watertight design. This elbow provides a 90-degree change of direction in a conduit run and a compact wire pulling point. It is suitable for use with IMC/threaded rigid metal conduit.

• Gasketed pulling elbows provides a compact wire pulling point
• Elbows provide a 90 deg change of direction in a conduit run
• ARRA Compliant

Product Highlights

The APPLETON MFL-100 pulling elbow is made of malleable iron with a triple-coated finish. It is suitable for connecting threaded rigid conduit or IMC to a box or enclosure.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: MFL-100
• Country of Origin: United States

Technical Specifications

• Type: Male to Female Gasketed Watertight
• UNSPSC: 39131717
• Brand: Appleton
• Connector Type: Elbow
• Thread Size: 1 inch
• Manufacturer: Appleton
• Manufacturer Part Number: MFL-100
• Material: Malleable Iron
• Country of Origin: United States
• Diameter: 1 in
• Insulation: Non-Insulated
• Application: For Connecting Threaded Rigid Conduit Or IMC To Box Or Enclosure
• ARRA Compliant: Y
• Buy American Compliant: N
• Catalog Number: MFL100
• Connection: Female Threaded X Male Threaded
• EU RoHS Indicator: C
• Flexibility: Rigid And IMC
• Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178
• Standards: ARRA CompliantRoHS CompliantUL File No. E14814/514BCSA 065178 C22.2 No. 18.3
• Suitable For Use With: IMC/Threaded Rigid Metal Conduit
• UPC 11: 78138163125
• UPC 12: 781381631259
• Angle: 90 \b0
• Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
• Trade Size: 1 in
