Appleton LRL75-M Unilet Form 35 3/4 Threaded

Product Description

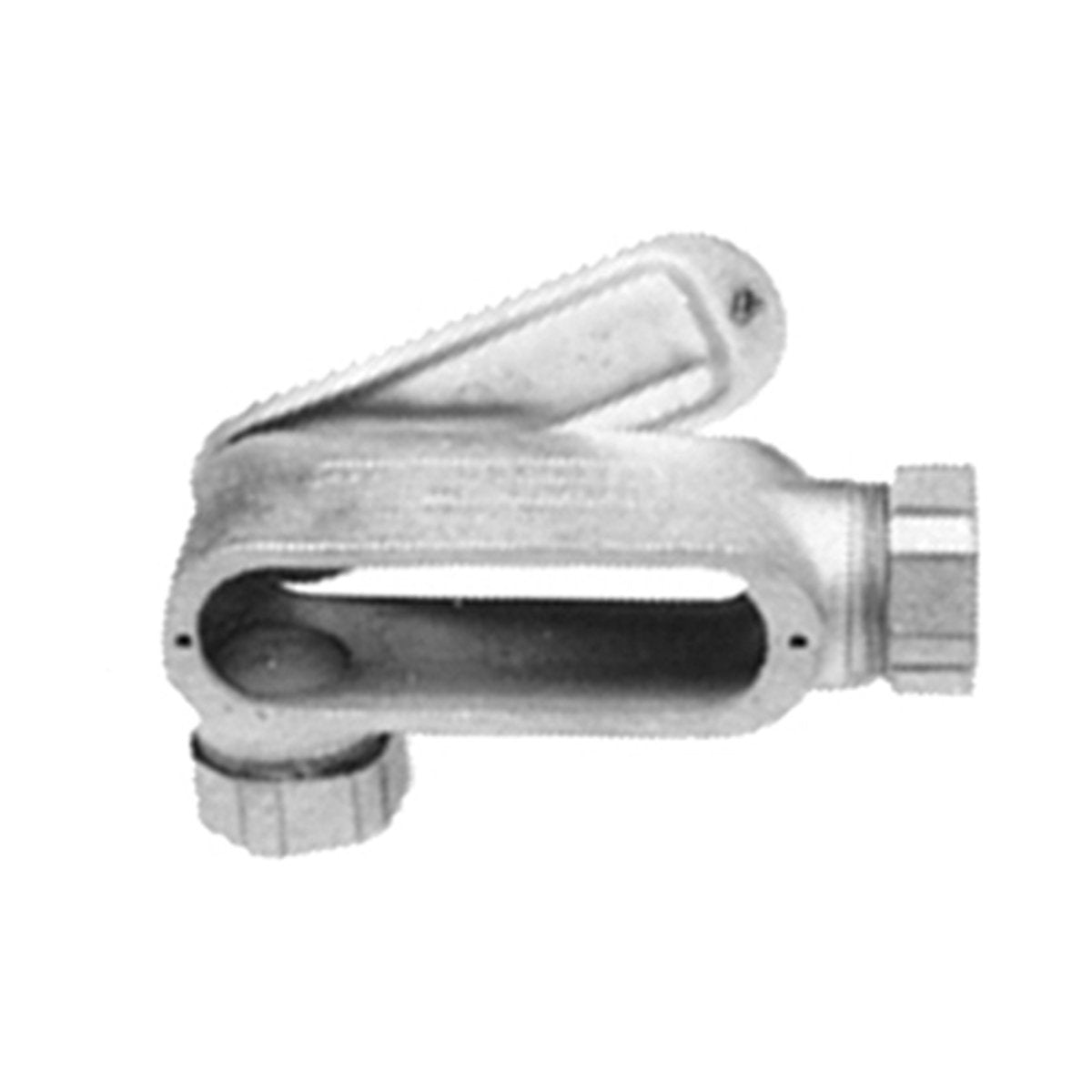

Appleton LRL75-M is a conduit outlet body designed for rigid steel and aluminum conduit. This type LRL conduit body with a three-quarter inch hub accommodates connections and changes in conduit direction. It is made from malleable iron and features triple coated protection.

• Eight point eight cubic inch capacity
• Two hubs for flexible installation
• NEMA FB-1 enclosure rated for durability

Product Highlights

This product serves areas requiring secure connections in electrical systems while enabling access for maintenance.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• MPN: LRL75-M
• Material: Malleable Iron
• Finish: Triple Coated
• Form: 35
• Hub Size: 3/4 inch
• Capacity: 8.8 cu-in
• Number of Hubs: 2
• Connection Type: Tapered FNPT
• Dimensions: 5.38 in L x 2.19 in W x 2.31 in H
• Enclosure: NEMA FB-1
• Application: For Rigid Steel/Aluminum and IMC Conduit
• Standards: UL 514A/514B, CSA C22.2 No. 18.3
