Appleton LR47SA Lr47sa 1-1/4 Inch Form 7 Type Lr Aluminum Body

Product Description

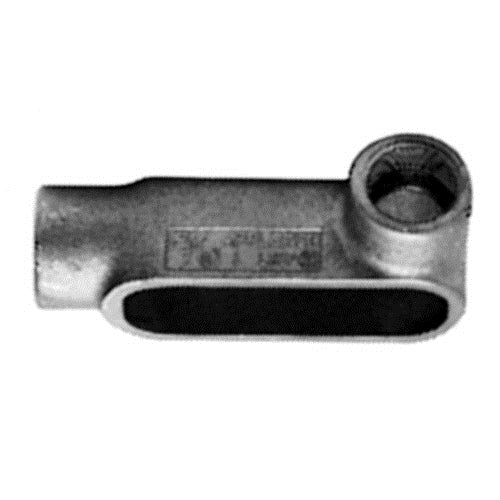

The APPLETON LR47SA is a Type LR Conduit Outlet Body with a hub size of 1-1/4 inches. Constructed from aluminum with an epoxy powder coat finish, it is designed for use with rigid steel, rigid aluminum conduit, and IMC. The body features a tapered female threaded connection and a Form 7 design.

• For Use With Rigid Steel
• For Use With Rigid Aluminum Conduit
• For Use With IMC
• Access Opening Right Side

Product Highlights

This aluminum conduit outlet body serves as a pulling fitting, makes bends in conduit systems, and provides access for splicing.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: LR47SA
• Country of Origin: MX

Technical Specifications

• Type: Type LR Conduit Outlet Body
• Brand: Appleton
• Width: 3.19 in
• Finish: Powder Coated
• Length: 6-1/2 Inch
• Hub Size: 1.25 in
• Material: Aluminum
• Sub Brand: UNILETS
• Trade Size: 1-1/4 Inch
• Product UPC: 78138160093
• 12-Digit UPC: 781381600934
• Applications: For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
• TC Connection: Tapered Female Threaded
• Configuration: LR
• Hub Location: 90 Deg
• Number of Hubs: 2
• Installation: Threaded
• Form Type: Form 7
• Approval: UL 514A/514B, CSA C22.2, NEC, CEC
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Capacity: 20 Cu Inch
• Application: To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
• Connection: Tapered Female Threaded
• Standard: UL, CSA
• MPN: LR47SA
• Manufacturer: Appleton
• Diameter: 1 1/4 in
• Family / Style: Form 7
• Country of Origin: MX
