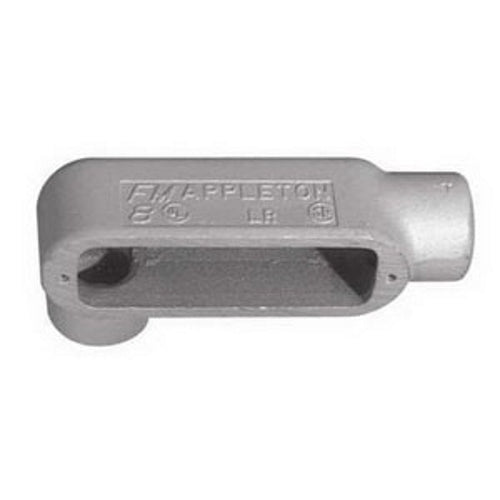

Appleton LR38 1 TYPE LR FORM 8 BODY

Product Description

The Appleton LR38 is a type LR form eight conduit outlet body designed for use with rigid steel conduit and IMC. The MPN for this product is LR38. This outlet body accommodates a hub size of one inch and is built from durable Grayloy iron with a zinc finish.

• Hub size: 1 inch
• Length: 6.63 inches
• Width: 2.78 inches

Product Highlights

This conduit outlet body serves multiple functions, including allowing bends in conduit systems, providing openings for splicing, and connecting conduit runs. It also permits access to conductors for maintenance and includes smooth, rounded integral bushings that help protect conductor insulation.

Product Information

Standard Information

• Catalog Number: LR38
• Manufacturer: Appleton Electric

Technical Specifications

• Type: Type LR Conduit Outlet Body
• Material: Grayloy Iron
• Color: Gray
• Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
• Standard: UL 514A, UL 514B
• Application: For Use With Rigid Steel Conduit And IMC
• Connection: Tapered Female Threaded
• Country of Origin: Mexico
